Smart5
Versatile tracking with Smart5

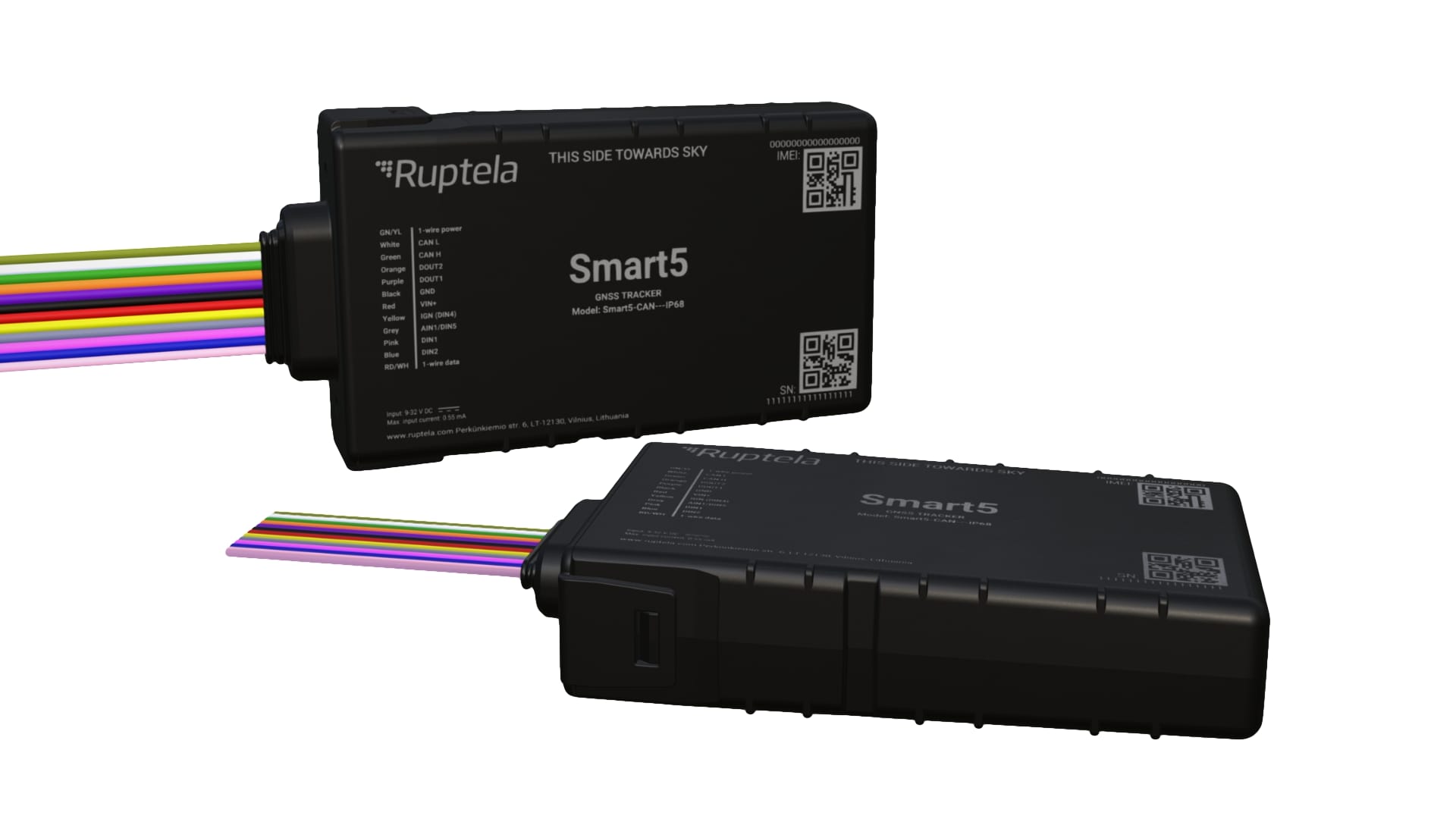

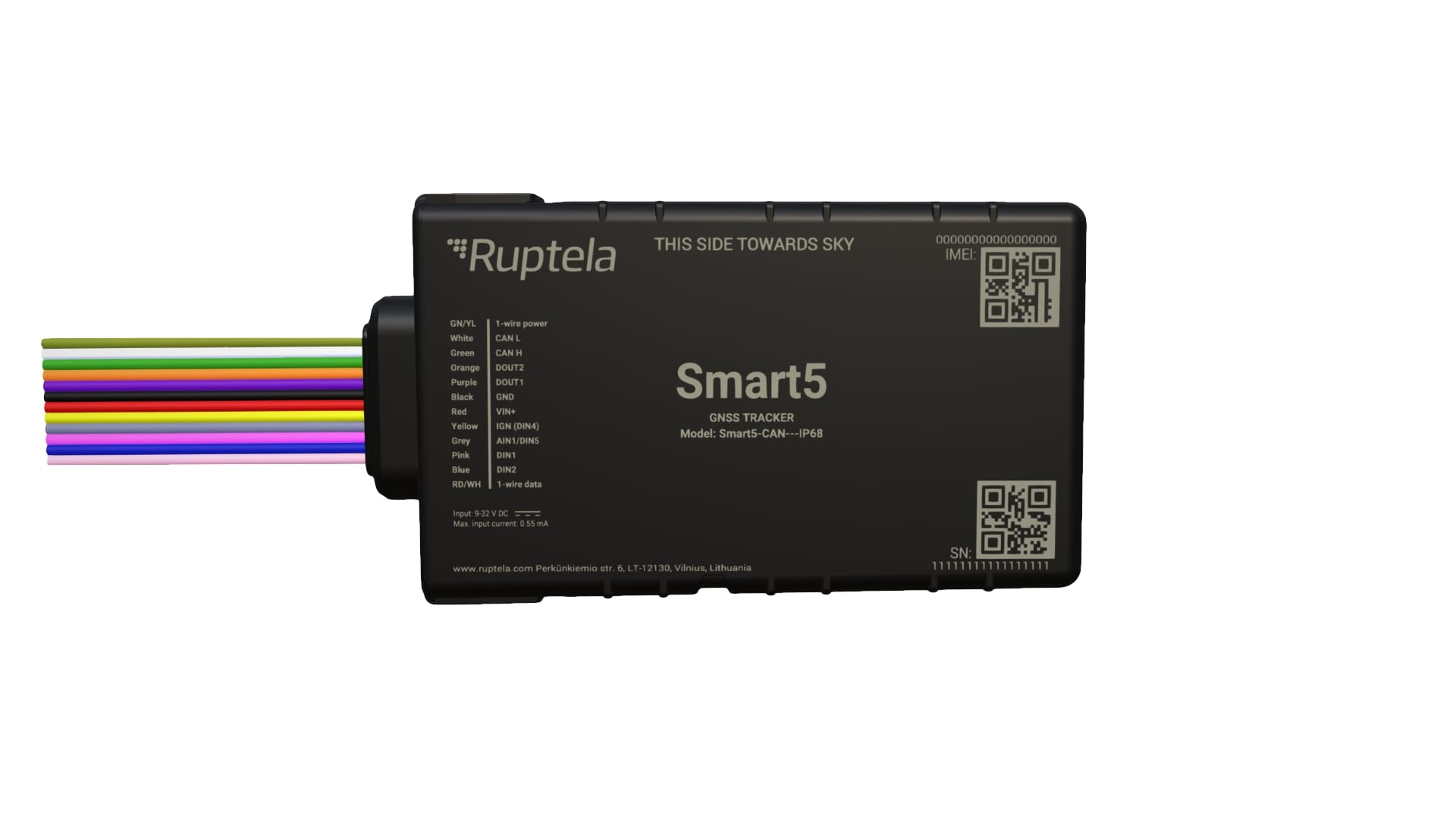

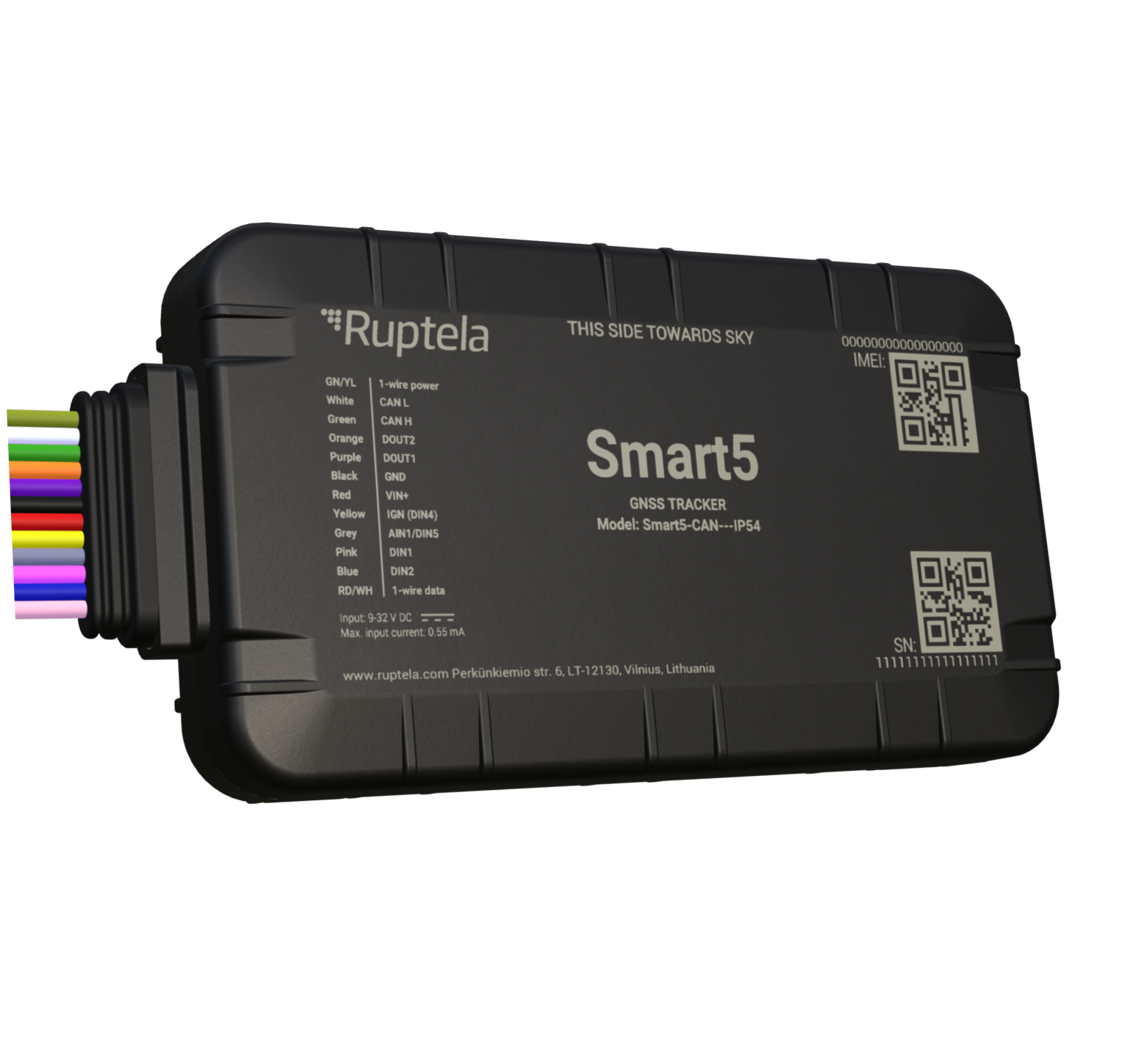

Smart5 is a versatile Ruptela GPS vehicle tracker designed for flexible fleet management. It combines 4G connectivity with 2G fallback, CAN and OBD data reading, and CustomCAN support to ensure compatibility across a wide range of vehicles. Available in slim IP54 (14 mm) and rugged IP68 (21 mm) housings, Smart5 adapts to both standard fleet cars and heavy-duty machinery. With BLE 5.0, multiple I/Os, ultra-low power consumption, and strong security features, Smart5 delivers reliable fleet tracking, driver monitoring, and asset protection in any environment.
Precise GNSS positioning
4G connectivity with 2G fallback
CAN bus and OBD data reading
CustomCAN support
Slim design
Dual housing options
Low power consumption
Secure operation
Bluetooth LE 5.0
Multiple I/O interfaces
Driver behavior monitoring & Eco-Drive
Smart5 delivers a powerful driver behavior monitoring and Eco-driving solution. Using CANbus and OBD data, fleets can track vehicle performance, fuel consumption, engine load, accelerator pedal activity, and other parameters.
Eco-driving insights are captured via 3-axis accelerometer and GPS, helping reduce fuel costs, improve safety, and optimize fleet efficiency. Key metrics include idling time, harsh acceleration and braking, and overspeeding, providing clear, actionable data to coach drivers and enhance operational performance across cars, vans, trucks, agriculture and construction machinery.
Real-time location monitoring
Driver identification
Cargo conditions monitoring
Vehicle and driver security
Trailers monitoring
Fuel monitoring
Logistics & Transportation
Track fleets in real time. Monitor driver behavior, optimize fuel consumption, and improve route planning for safer, more efficient operations.Heavy machinery & Construction
Monitor trucks, machinery, and equipment in harsh environments. Access performance data and operational metrics to enhance safety, reduce downtime, and improve asset utilization.Corporate fleets & Service vehicles
Enhance accountability and safe driving for company cars and vans. Streamline route planning and improve fleet efficiency with real-time tracking and driver monitoring.Rental & Leasing operations
Ensure secure vehicle use, track driver activity, and manage incidents to support compliance and efficient fleet management.Refrigerated & Sensitive cargo
Monitor cargo conditions in real time. Receive alerts to protect goods, maintain compliance, and ensure safe deliveries.Trailers & Semi-trailers
Track trailers to improve fleet visibility, safety, and operational efficiency across logistics and construction operations.Electric vehicles (EVs)
Access CANbus and OBD data from EVs, monitoring battery, energy consumption, and driver behavior to support modern, sustainable fleet operations.
EasyCAN

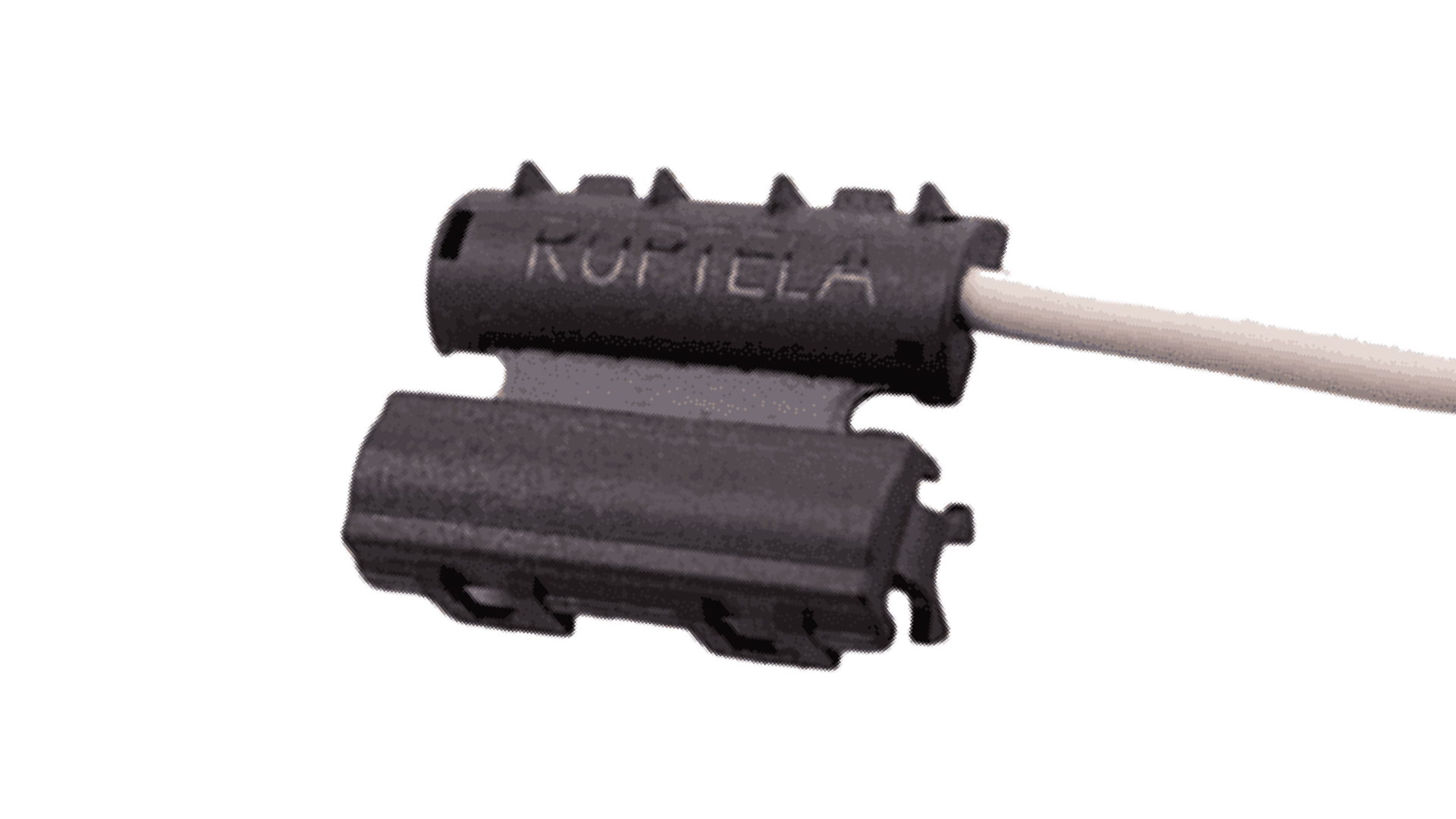

EasyCAN is a CANbus adapter that enables fast and secure access to vehicle data without cutting wires or risking the manufacturer’s warranty. It connects GPS tracking devices directly to the vehicle’s onboard computer, supporting both FMS and J1939 standards for reliable CANbus data reading. With its compact 40 × 15 mm design and 1-meter cable, EasyCAN is easy to install on both trucks and light vehicles, ensuring safe, accurate, and efficient fleet data integration.
| Connectivity | LTE CAT1 with 2G fallback |
| Bluetooth LE | 5.0 |
| GNSS Module | u-blox supporting GPS, GLONASS, Galileo positioning systems |
| Vehicle Data Reading | 1x CANbus interface |
| CustomCAN | Available |
| I/O Interfaces | 3x Digital inputs (DIN), 1x Analog/digital input (AIN/DIN), 2x Digital outputs (DOUTs), 1x 1-Wire interface |
| Memory | Internal: 8MB (max. 36000 records) |
| Power Supply | 9-32V DC |
| Lowest Power Consumption | <0.5 mA |
| Internal Back-up Battery | 180 mAh |
| Size | IP54 version: 95 x 51 x 14 mm, IP68 version: 98 x 56 x 21 mm |
Full Smart5 specifications

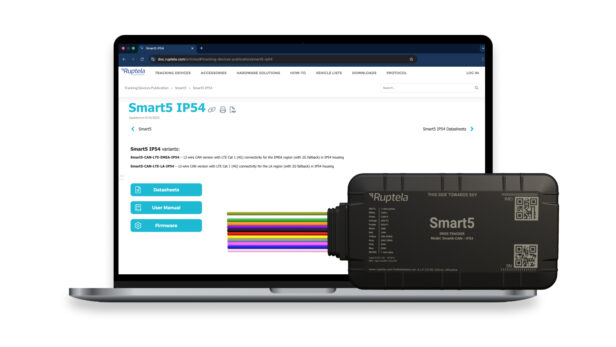

Discover everything you need to get the most out of Smart5 and other Ruptela GPS tracking devices at doc.ruptela.com. There, you’ll find detailed datasheets, quick start guides, and comprehensive user manuals, as well as the latest firmware releases to keep your hardware up to date.
Advanced configurator
Advanced Configurator is Ruptela’s software tool designed for precise setup of GPS trackers. It allows fine-tuning of configurations, selecting operational modes, creating custom I/O events, adjusting CANbus reading options, and setting up customCAN parameters. With its flexibility and depth, Advanced Configurator ensures devices are optimized for diverse fleet and industry requirements.
Device Management Platform
Ruptela’s Device Management Platform is a dynamic online solution for remote configuration and firmware-over-the-air (FOTA) updates of GPS tracking devices. It is a complementary solution to all compatible Ruptela’s hardware devices.
| Smart5-CAN-LTE-EMEA-IP54 | 12-wire CAN version with LTE Cat 1 (4G) connectivity for the EMEA region (with 2G fallback) in IP54 housing |
| Smart5-CAN-LTE-LA-IP54 | 12-wire CAN version with LTE Cat 1 (4G) connectivity for the LA region (with 2G fallback) in IP54 housing |
| Smart5-CAN-LTE-EMEA-IP68 | 12-wire CAN version with LTE Cat 1 (4G) connectivity for the EMEA region (with 2G fallback) in IP68 housing. |
| Smart5-CAN-LTE-LA-IP68 | 12-wire CAN version with LTE Cat 1 (4G) connectivity for the LA region (with 2G fallback) in IP68 housing. |
