Ruptela

Pro5S

Vehicle GPS tracker with 4G+3G connectivity, audio communication, and advanced CANbus & OBD data
Contact us
Description
Ruptela
Ruptela
Ruptela

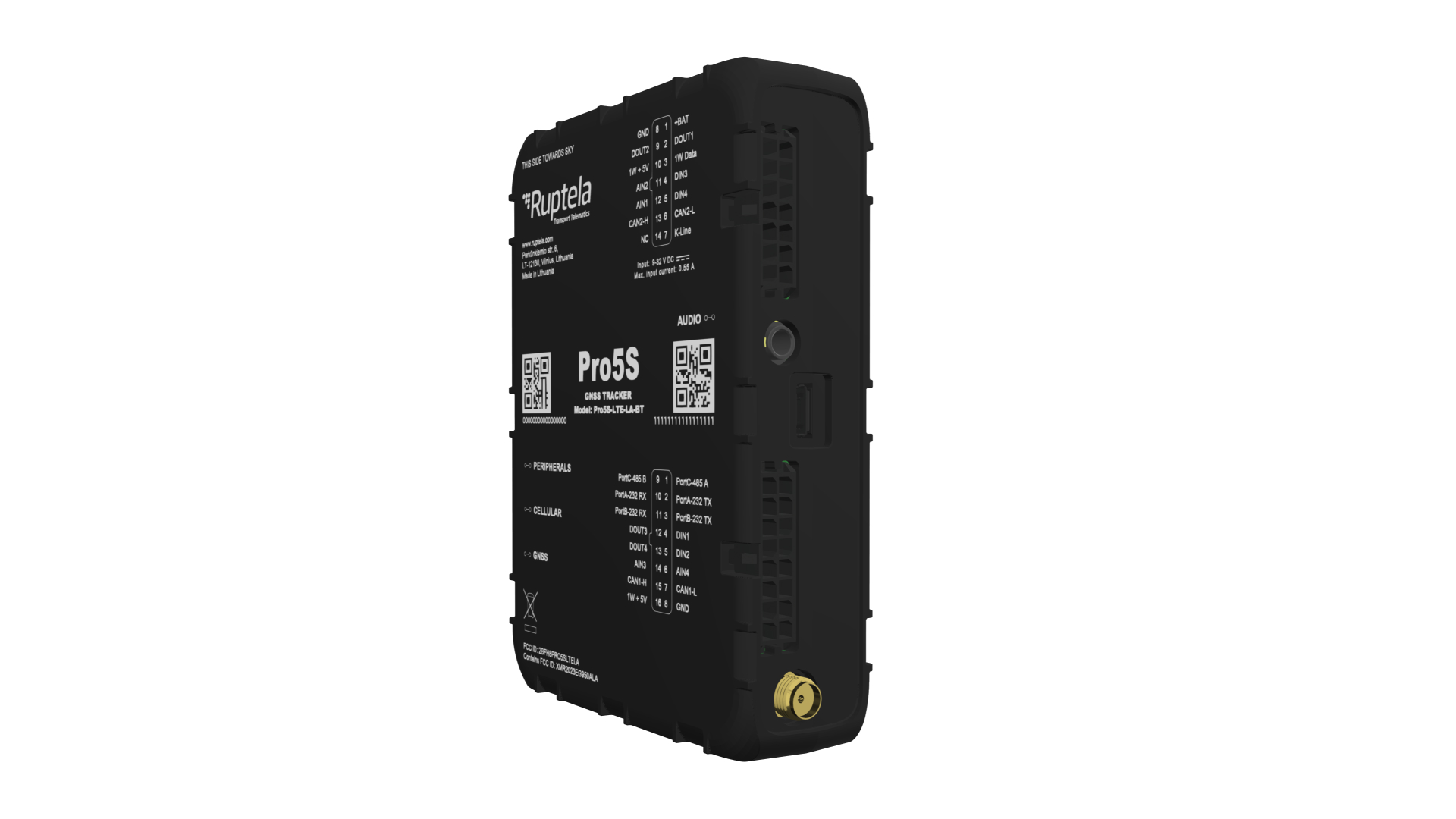

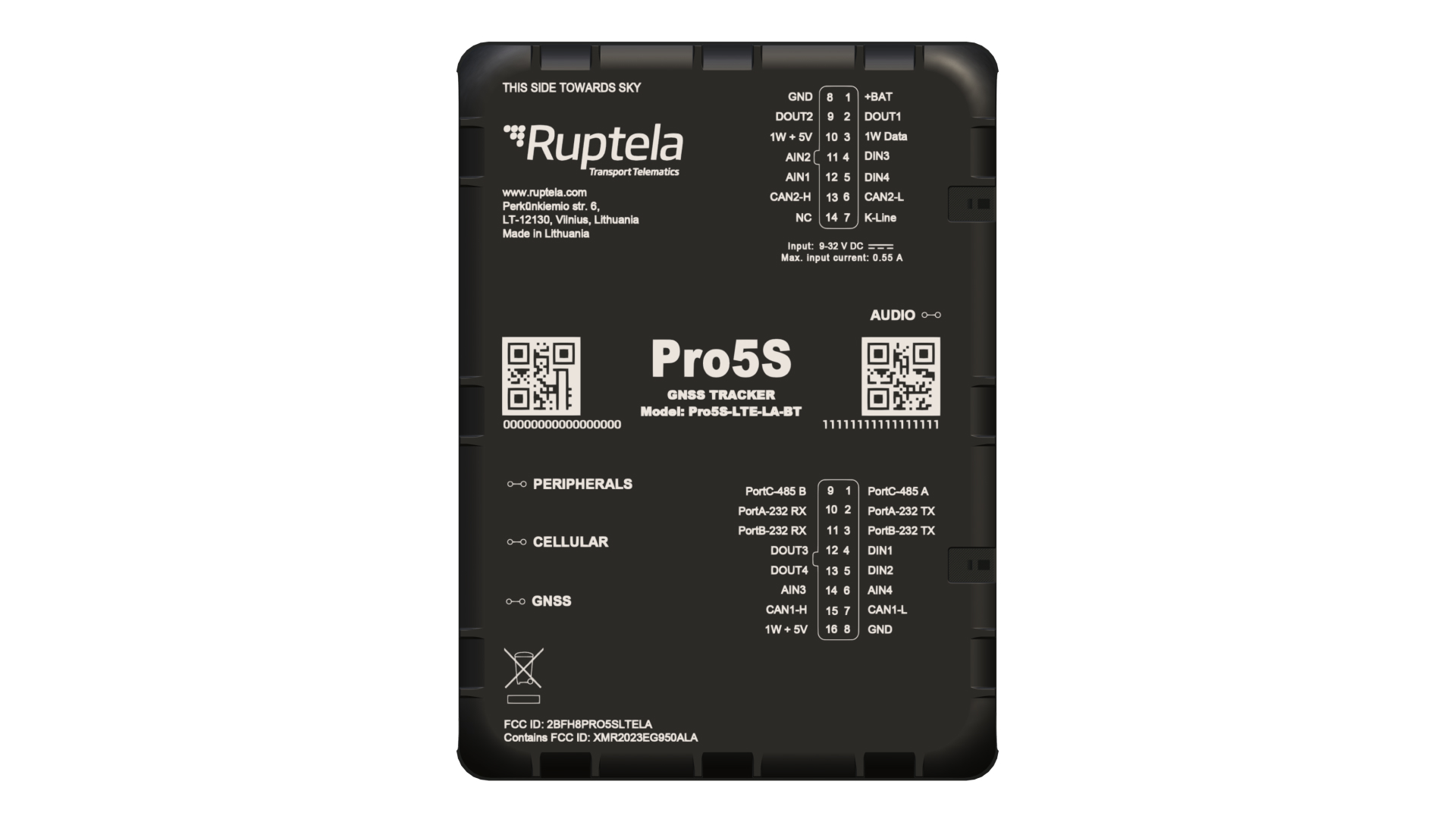

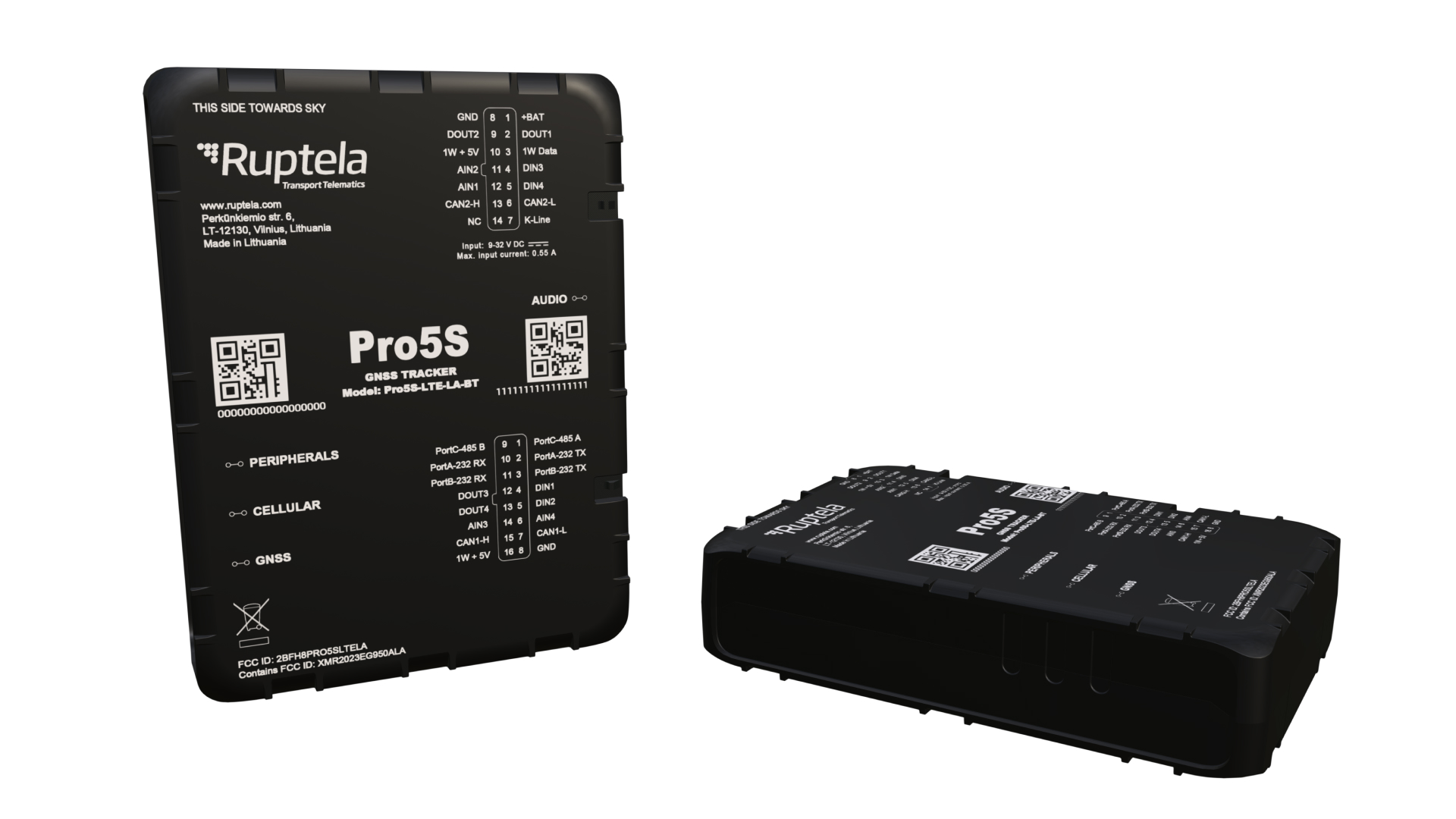

Reliable fleet monitoring with Pro5S

Pro5S is a professional Ruptela GPS tracker built for LATAM fleets, combining reliable 4G+3G connectivity with audio communication for direct driver interaction. It ensures precise positioning with a Swiss-made u-blox GNSS module supporting GPS, GLONASS, and Galileo, plus an option for an external antenna. The device reads CANbus and OBD data from 1,500+ vehicles via 2×CAN and 1×K-line, with CustomCAN for broader coverage. Compact and easy to install, Pro5S also offers Bluetooth 5.1, multiple I/Os, and safeguards such as tamper, jamming, and impact detection.

*Available only in LATAM region

Ruptela

Precise GNSS location monitoring

Swiss-made u-blox module with GPS/GLONASS/Galileo support. External antenna option ensures accuracy in tough environments.
Ruptela

4G+3G connectivity

Built for LATAM networks, Pro5S ensures stable data transfer where 2G is fading and 3G remains widely used.
Ruptela

CANbus & OBD data reading

2xCAN and 1xK-line to read data from 1,500+ vehicles – from light cars to heavy trucks, trailers, and machinery.
Ruptela

CustomCAN

Expand compatibility beyond supported list and read CAN data from any vehicle, giving you the flexibility to better support your clients.
Ruptela

3.5 mm audio jack

Connect audio accessories for two-way communication and driver interaction.
Ruptela

Bluetooth LE 5.1

Wireless connection to accessories and sensors, with low-energy performance for optimized power consumption.
Ruptela

I/O interfaces

Multiple DINs, DOUTs, AINs, RS232, RS485, and 1-Wire interface to integrate with sensors, accessories, and external systems.
Ruptela

Easy installation

Compact housing (101×74×23 mm) and a dedicated installation harness allow fast, reliable setup in tight spaces.
Ruptela

Smart features

Built-in accelerometer, tamper and jamming detection, sleep mode, impact detection, and internal storage for data logging.
Ruptela

Driver behaviour monitoring & Eco-Drive

Pro5S tracks driver conduct and vehicle performance in real time using 2xCAN interfaces and a 3-axis accelerometer. It monitors harsh braking, aggressive acceleration, cornering, idling, overspeeding, and fuel consumption, with parameters available from both conventional vehicles and EVs, to enhance fleet safety and support driver coaching. Advanced metrics, including engine load, RPM bands, cruise control usage, and compound performance indicators, enable proactive maintenance, efficient route planning, and evidence-based driver training.

Ruptela

Real-time location monitoring

Maintain real-time fleet visibility and stay informed of critical or high-priority incidents for faster decision-making.
Ruptela

Audio communication

Enable direct communication with drivers to improve operations, coordination, and security in critical cases.
Ruptela

Driver identification

Ensure vehicles start only after driver authorization, supporting incident investigation and multi-driver fleets.
Ruptela

Cargo conditions monitoring

Monitor cargo temperature and receive instant alerts for deviations from refrigerated trailers or external sensors.
Ruptela

Vehicle and driver security

Prevent unauthorized use with remote ignition blocking, track door activity, and enable drivers to alert via the panic button in emergencies.
Ruptela

Trailers monitoring

Read trailer CAN data, including EBS, tyre pressure (TPMS), tilt angle, and axle load for safer and compliant operations.
Pro5S by industry:

Logistics & Transportation

Track fleet location, monitor driver behavior, and optimize fuel consumption for trucks, trailers, and delivery vehicles.

Heavy machinery & Construction

Monitor vehicle performance, engine load, and operational parameters in harsh environments to improve safety and uptime.

Corporate fleets & Service vehicles

Enhance driver accountability, enforce safe driving, and streamline route planning for company cars and service vans.

Rental & Car-sharing operations

Enable driver identification, track usage, and investigate incidents for secure and efficient fleet management.

Refrigerators & Sensitive cargo

Monitor temperature and cargo conditions in real time to ensure goods arrive safely and comply with regulations.

Trailers monitoring

Read trailer CAN parameters, including EBS, tyre pressure, tilt angle, and axle load for safe, compliant operations.

Electric Vehicles (EVs)

Access CANbus and OBD data from EVs to monitor battery, energy consumption, and driver behaviour for modern fleets.

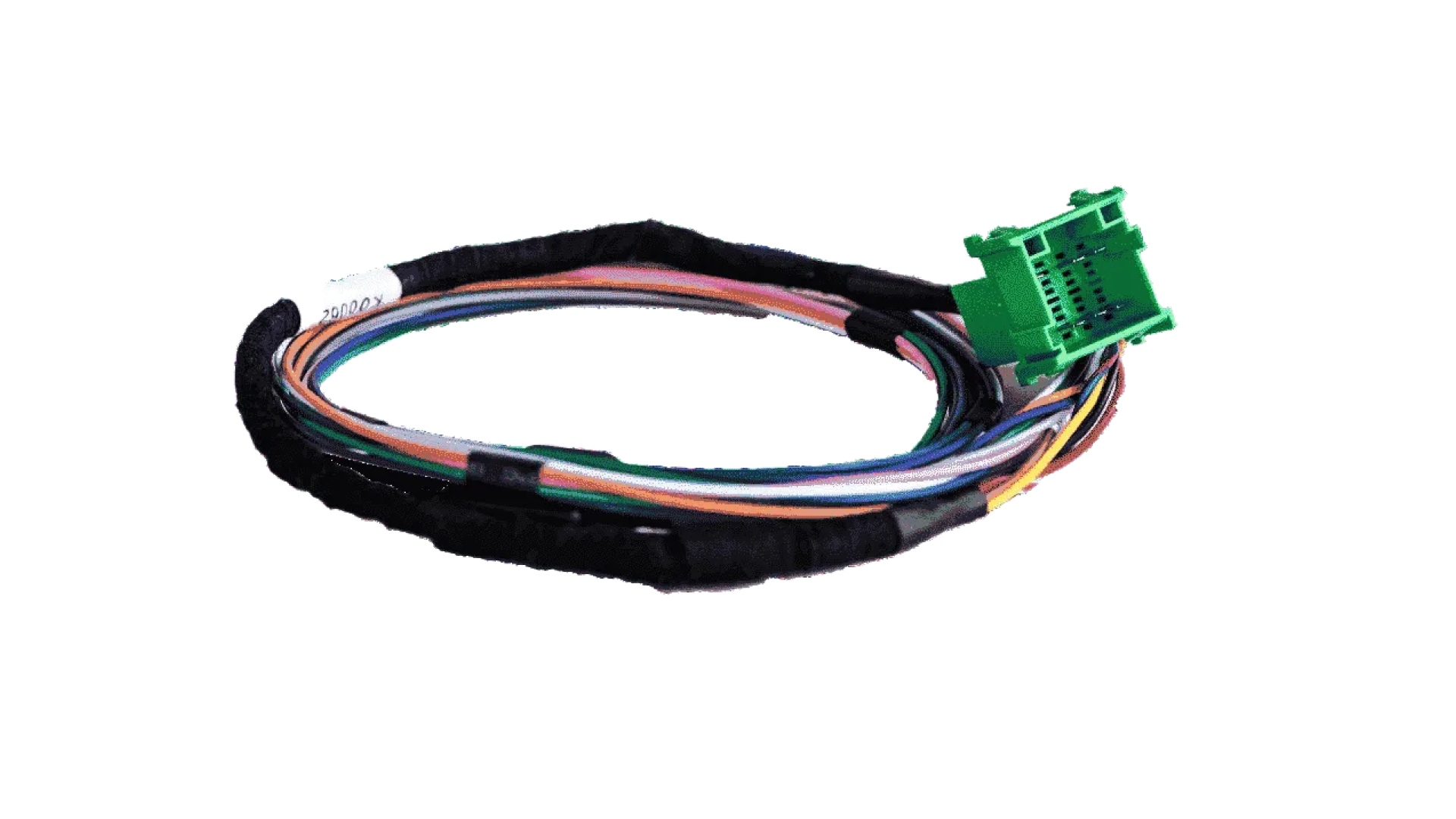

FMS Harness

FMS Harness

FMS Harness is designed for installing advanced trackers in trucks. It enables faster and easier setup, ensures professional installation, minimizes the risk of faulty wiring, and allows reliable CANbus data reading.

Ruptela
EasyCAN
Connect trackers to CANbus safely without wire cutting, keeping the manufacturer’s warranty intact.
Ruptela
Other harnesses
OBDII harness for light vehicles, Thermo King and 9-Pin Y Splitter harnesses for easy truck tracker installation.
Ruptela
Fuel level sensors
Monitor fuel level, track consumption, and prevent theft with wired or Bluetooth connectivity.
Ruptela
Temperature Sensors
Measure and monitor cargo or fridge temperatures with wired or Bluetooth sensor options.
Ruptela
Door sensors
Detect door open/close events with robust sensors, available in wired or Bluetooth versions.
Ruptela
Wireless trailer ID
Identify trailers, containers, or equipment with a rugged beacon lasting up to 20 years.
Ruptela
Driver identification
Verify drivers via iButton, RFID, or wireless ID solutions to ensure accountability and control.
Ruptela
Ignition block relay
Block unauthorized vehicle use with remote ignition relay control via system or SMS.
Ruptela
Trailer sensors
Monitor axle load, tilt angle, and weight distribution to ensure safe heavy vehicle operation.
Ruptela
External GNSS antenna
Boost GPS accuracy when trackers are mounted under metal or in obstructed environments.
ConnectivityLTE CAT4 with 3G fallback
Bluetooth LE5.1
GNSS moduleu-blox supporting GPS, GLONASS, Galileo positioning systems
Vehicle data reading2x CANbus and 1x K-Line interfaces
CustomCANAvailable
I/O interfaces4x Digital inputs (DIN), 4x Analog inputs (AINs), 4x Digital outputs (DOUT), 1x 1-Wire interface
Serial ports2x RS232, 1x RS485
MemoryInternal: 8MB (max. 39000 records), External: up to 32 GB (max. 250M records)
Power supply9-32V DC
Internal back-up battery1050 mAh
Size
101 x 74 x 23 mm
Ruptela

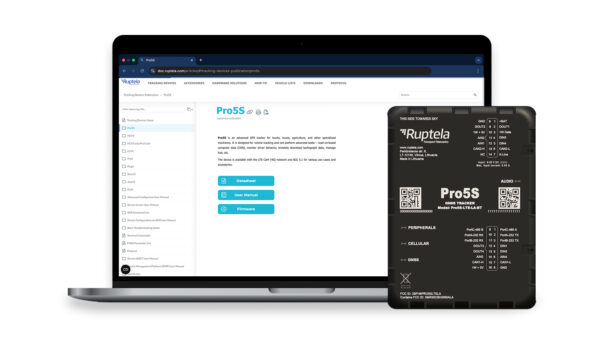

Full Pro5S specifications

Discover everything you need to get the most out of Pro5S and other Ruptela GPS tracking devices at doc.ruptela.com. There, you’ll find detailed datasheets, quick start guides, and comprehensive user manuals, as well as the latest firmware releases to keep your hardware up to date.

Advanced configurator

Advanced Configurator is Ruptela’s software tool designed for precise setup of GPS trackers. It allows fine-tuning of configurations, selecting operational modes, creating custom I/O events, adjusting CANbus reading options, and setting up customCAN parameters. With its flexibility and depth, Advanced Configurator ensures devices are optimized for diverse fleet and industry requirements.

Learn more

Device Management Platform

Ruptela’s Device Management Platform is a dynamic online solution for remote configuration and firmware-over-the-air (FOTA) updates of GPS tracking devices. It is a complementary solution to all compatible Ruptela’s hardware devices.

Learn more
Pro5S-LTE-LA-BTPro5S with LTE CAT4 and 3G connectivity for Latin America
