Eco5 Lite+

Rugged IP68 GPS tracker for EVs with high voltage support

Built for micro-mobility

Ruptela Eco5 Lite+ is a durable GNSS-based tracker designed specifically for small EVs and micro-mobility operations. With high voltage acceptance up to 97V, IP68-rated housing, and reliable LTE connectivity, Eco5 Lite+ delivers high performance across e-scooters, delivery EVs, golf carts, and other light electric vehicles.

Its compact, screwless housing simplifies installation, while ultra-low power consumption supports long parked periods without draining the vehicle battery. BLE 5.0 ensures wireless connectivity to sensors and ID tags, enabling efficient security and operational control.

Eco5 Lite+ combines rugged durability, fit-for-EV functionality, and practical fleet intelligence – all in a size made for modern mobility.

High-voltage support

Compatible with EV power systems up to 97V – ideal for scooters, small delivery vehicles, and utility EVs.

Precise GNSS positioning

Reliable tracking with u-blox GNSS across GPS, GLONASS, and Galileo for consistent fleet visibility.

4G + 2G connectivity

Reliable and future-ready data transfer with wide network coverage across regions.

Compact design

Small and waterproof IP68 housing fits easily in micro EVs.

Low power consumption

Consumes <0.5 mA in sleep mode to protect EV batteries and support long-term deployments.

Tamper-safe & protected

Jamming detection, unplug alerts, and a backup battery help maintain tracking during interference.

Bluetooth LE 5.0

Connect BLE sensors or ID tags for expanded monitoring without wiring.

I/O interfaces

DIN, AIN/DIN, and DOUT support basic EV control like ignition detection or motor disable.

Accelerometer

3-axis accelerometer detects movement and impacts, when vehicles are parked, and monitors driver behavior.

Battery monitoring for small EVs

Eco5 Lite+ enables monitoring of EV battery usage and behavior across micro-mobility and last-mile fleets. Battery-level tracking and driving event alerts help operators extend mileage, reduce breakdowns, and schedule timely charging or maintenance.

Combined with accurate GPS positioning, fleets gain clear visibility into how electric vehicles are used throughout the day, preventing unnecessary downtime and improving asset availability. The system helps ensure that batteries remain healthy, vehicles operate efficiently, and each asset delivers maximum value.

Live EV tracking

Track every EV’s position and battery state to optimize deployments and response times.

Driver identification

BLE tags connect trips to authorized riders to reduce misuse and enable billing accuracy.

Accident alerts

Accelerometer detects crashes or harsh riding, supporting rapid response and safety reporting.

Theft response support

Precise location updates and motion alerts accelerate asset retrieval after unauthorized movement.

Driver behavior insights

Identify harsh riding habits to reduce wear, extend battery life, and improve overall EV safety.
Eco5 Lite+ by industry

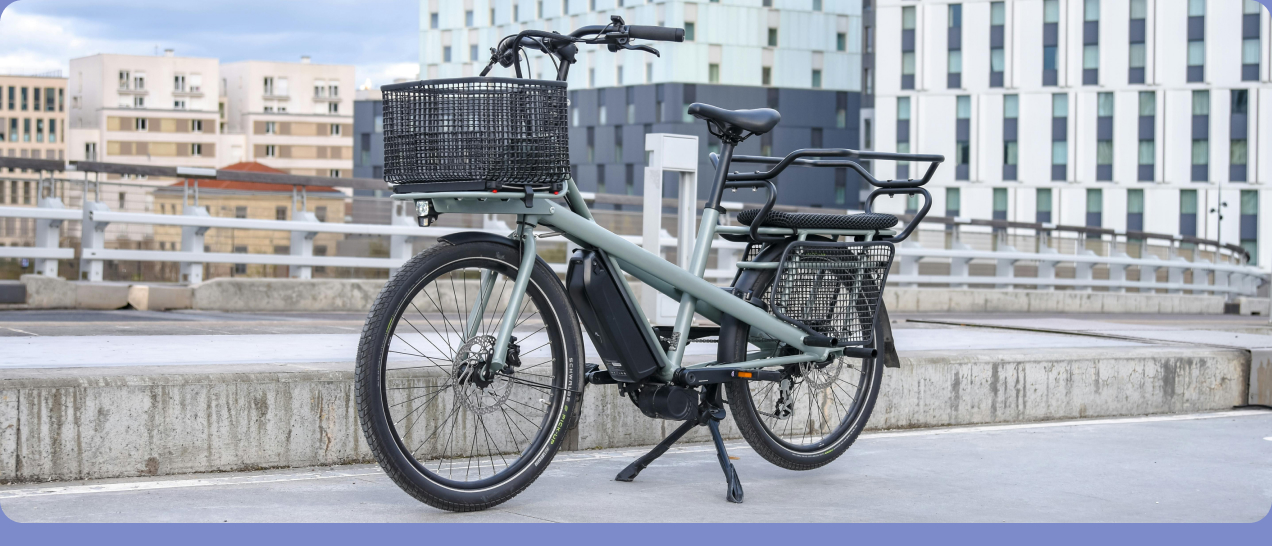

Shared E-scooters & E-bikes

Real-time tracking and automated driver identification streamline rentals, reduce losses, and improve fleet uptime.

Last-mile delivery EVs

Monitor routes, energy usage, and rider behavior to extend range and ensure reliable on-time deliveries.

Compact utility EVs

Track work cycles and battery status for carts and light transport vehicles used in campuses, factories, and resorts.

Urban E-mobility (Mopeds & Motorbikes)

Detect impacts, towing, or unauthorized movement to strengthen security in city-focused mobility services.

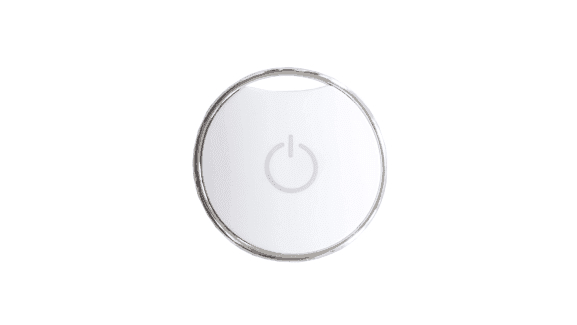

Driver identification

Verify drivers via wireless ID solutions to ensure accountability and control.

Connectivity LTE CAT1 or CAT M1 with 2G fallback
Bluetooth LE 5.0
GNSS module u-blox supporting GPS, GLONASS, Galileo positioning systems
I/O interfaces 1x Digital input (DIN), 1x Analog/digital input (AIN/DIN), 1x Digital output (DOUT)
Memory Internal: 8MB (max. 36000 records)
Power supply 9-97V DC
Lowest power consumption <0.5 mA
Internal back-up battery 180 mAh
Ingress protection
IP68
Size98 x 56 x 21 mm

Full Eco5 Lite+ specifications

Discover everything you need to get the most out of Eco5 Lite+ and other Ruptela GPS tracking devices at doc.ruptela.com. There, you’ll find detailed datasheets, quick start guides, and comprehensive user manuals, as well as the latest firmware releases to keep your hardware up to date.

Advanced configurator

Advanced Configurator is Ruptela’s software tool designed for precise setup of GPS trackers. It allows fine-tuning of configurations, selecting operational modes, creating custom I/O events, adjusting CANbus reading options, and setting up CustomCAN parameters. With its flexibility and depth, Advanced Configurator ensures devices are optimized for diverse fleet and industry requirements.

Device management platform

Ruptela’s Device Management Platform is a dynamic online solution for remote configuration and firmware-over-the-air (FOTA) updates of GPS tracking devices. It is a complementary solution to all compatible Ruptela’s hardware devices.

Eco5-5W-LTE-EMEA-V+-IP685-wire high voltage version with LTE Cat 1 (4G) connectivity for the EMEA region (with 2G fallback) in IP68 housing
Eco5-5W-LTE-LA-V+-IP685-wire high voltage version with LTE Cat 1 (4G) connectivity for the LA region (with 2G fallback) in IP68 housing
Eco5-5W-LTM-V+-IP685-wire high voltage version with global LTE Cat M1/LTE Cat NB2 connectivity (with 2G fallback) in IP68 housing
