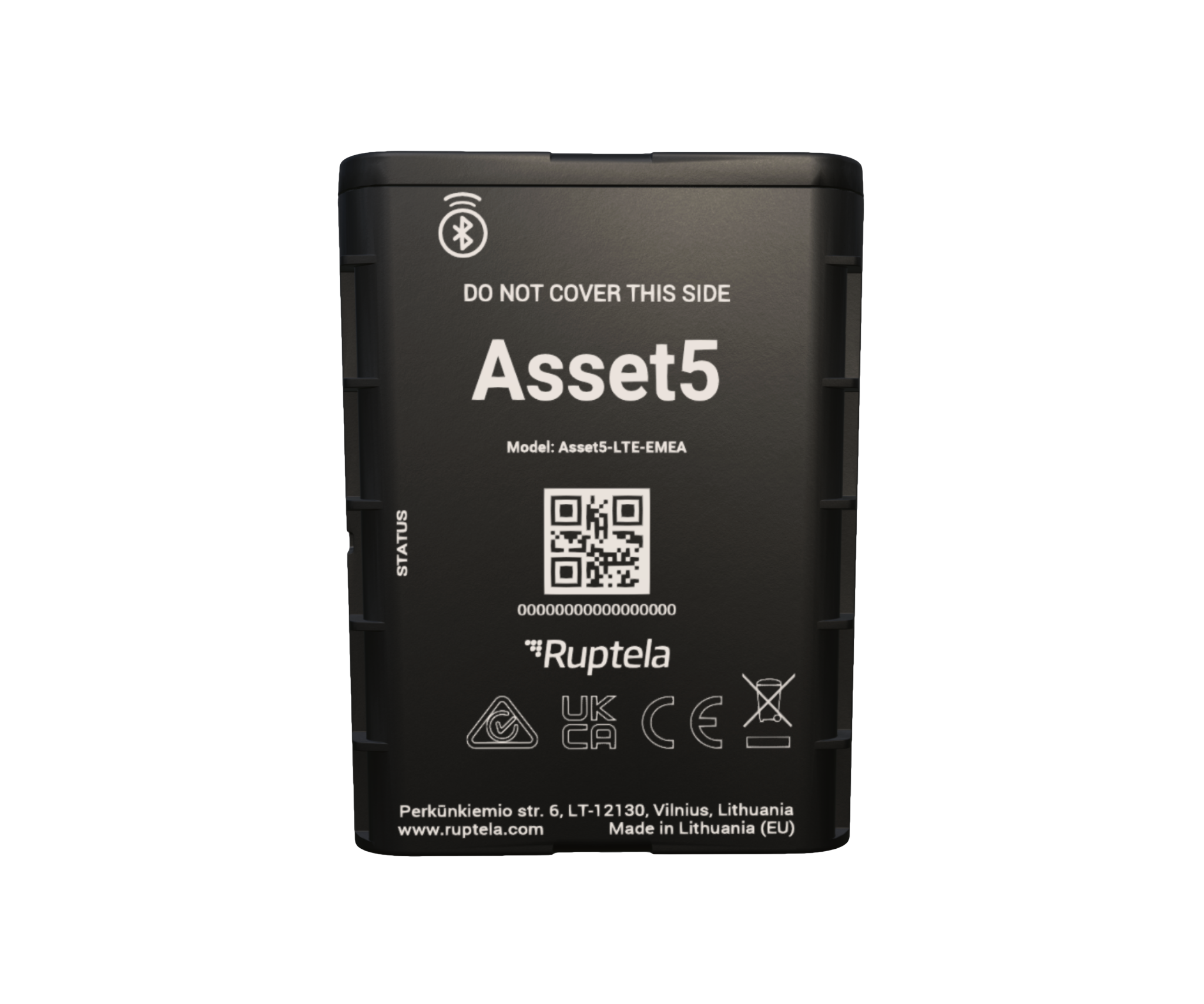

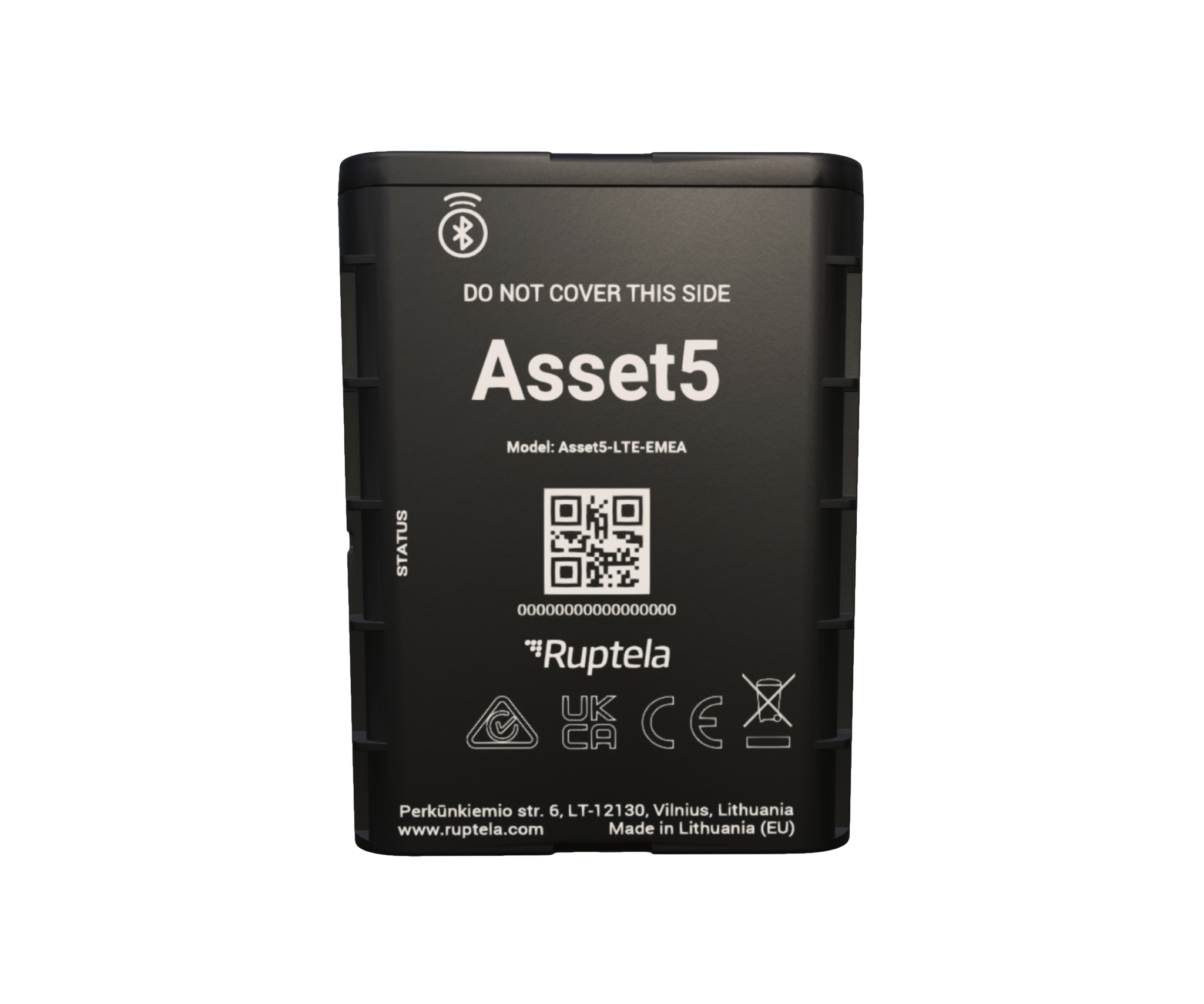

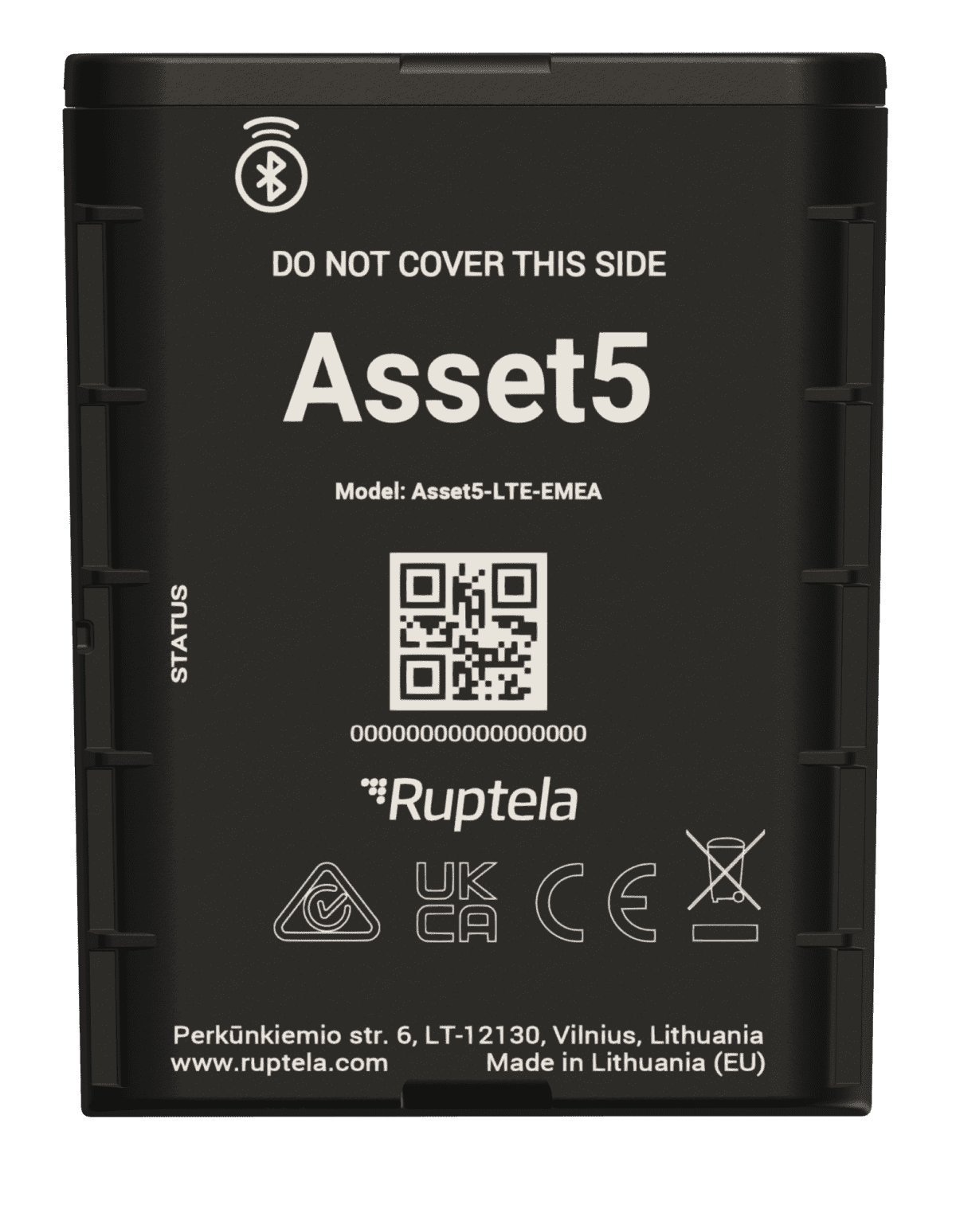

Asset5

A compact and durable GPS asset tracking device with long battery life and 4G connectivity

Description

Application

Reliable asset tracking with Asset5

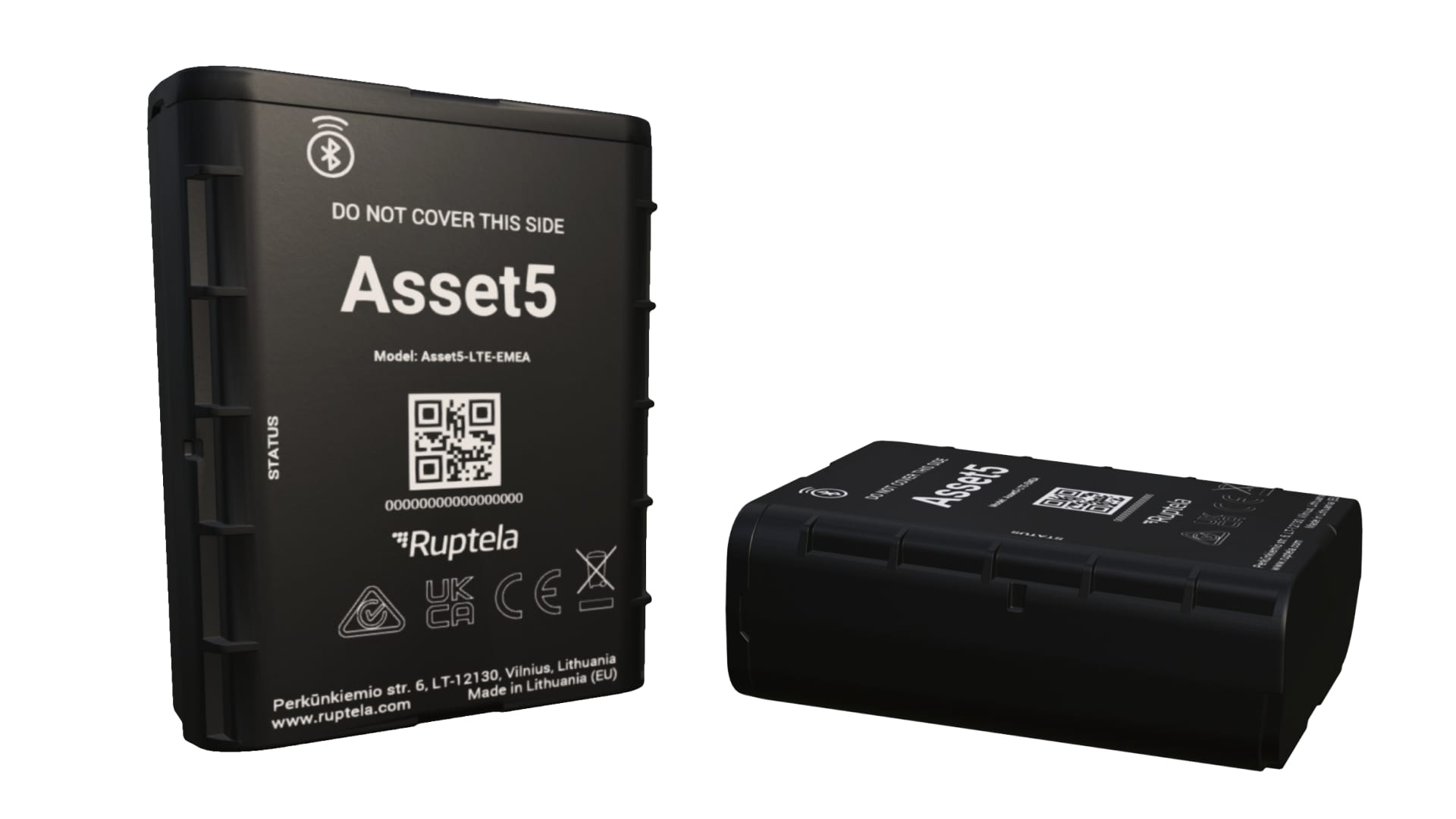

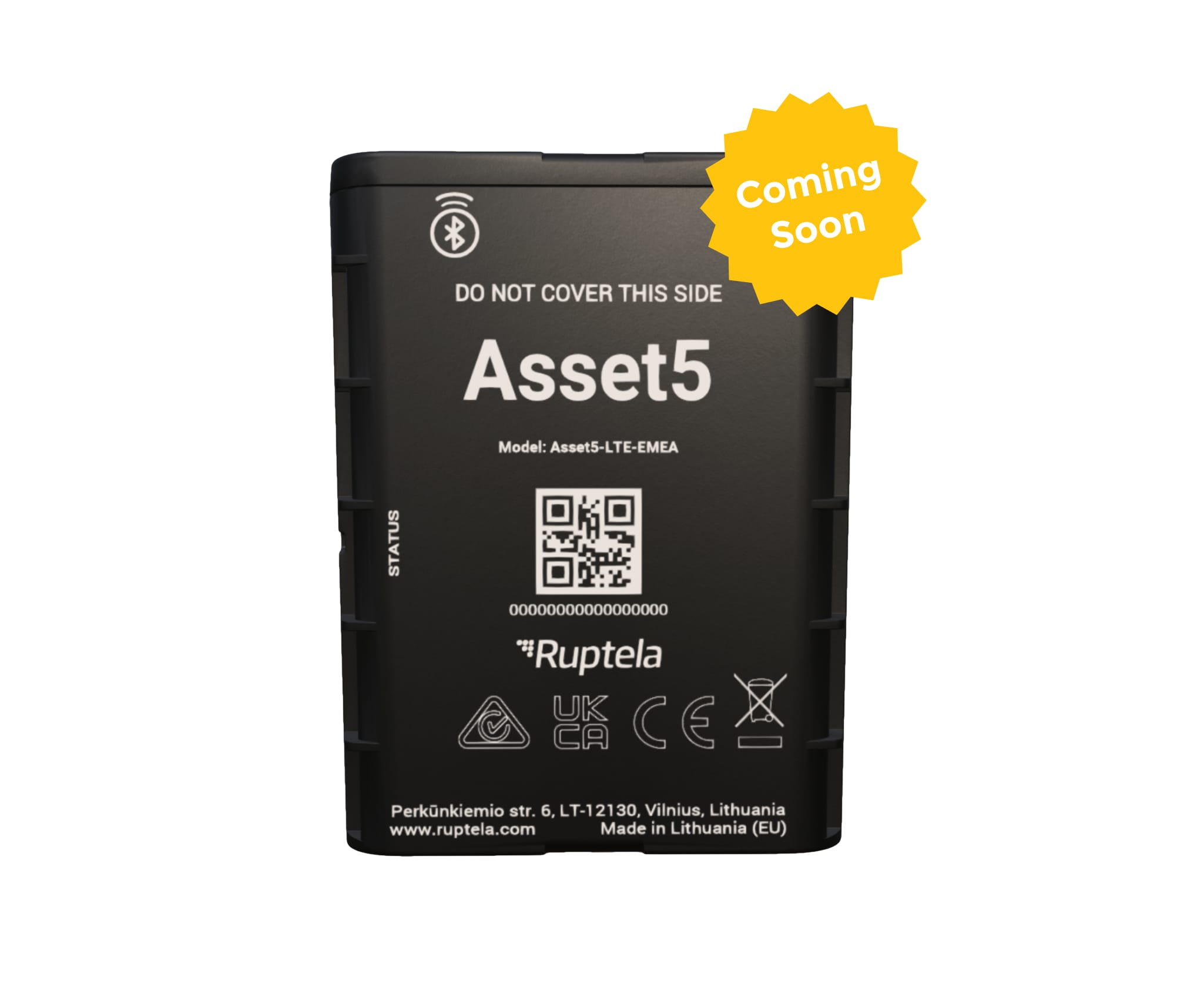

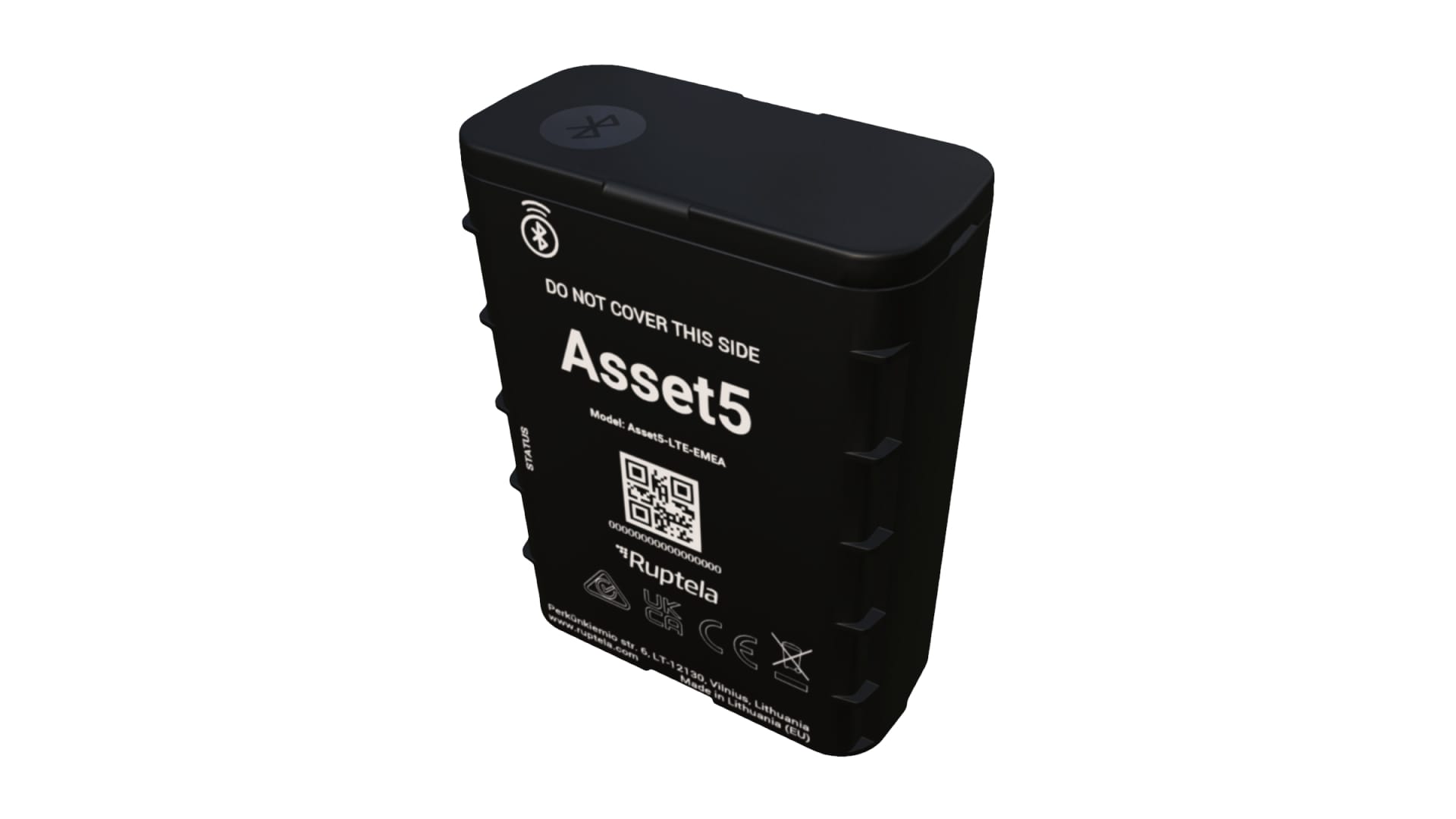

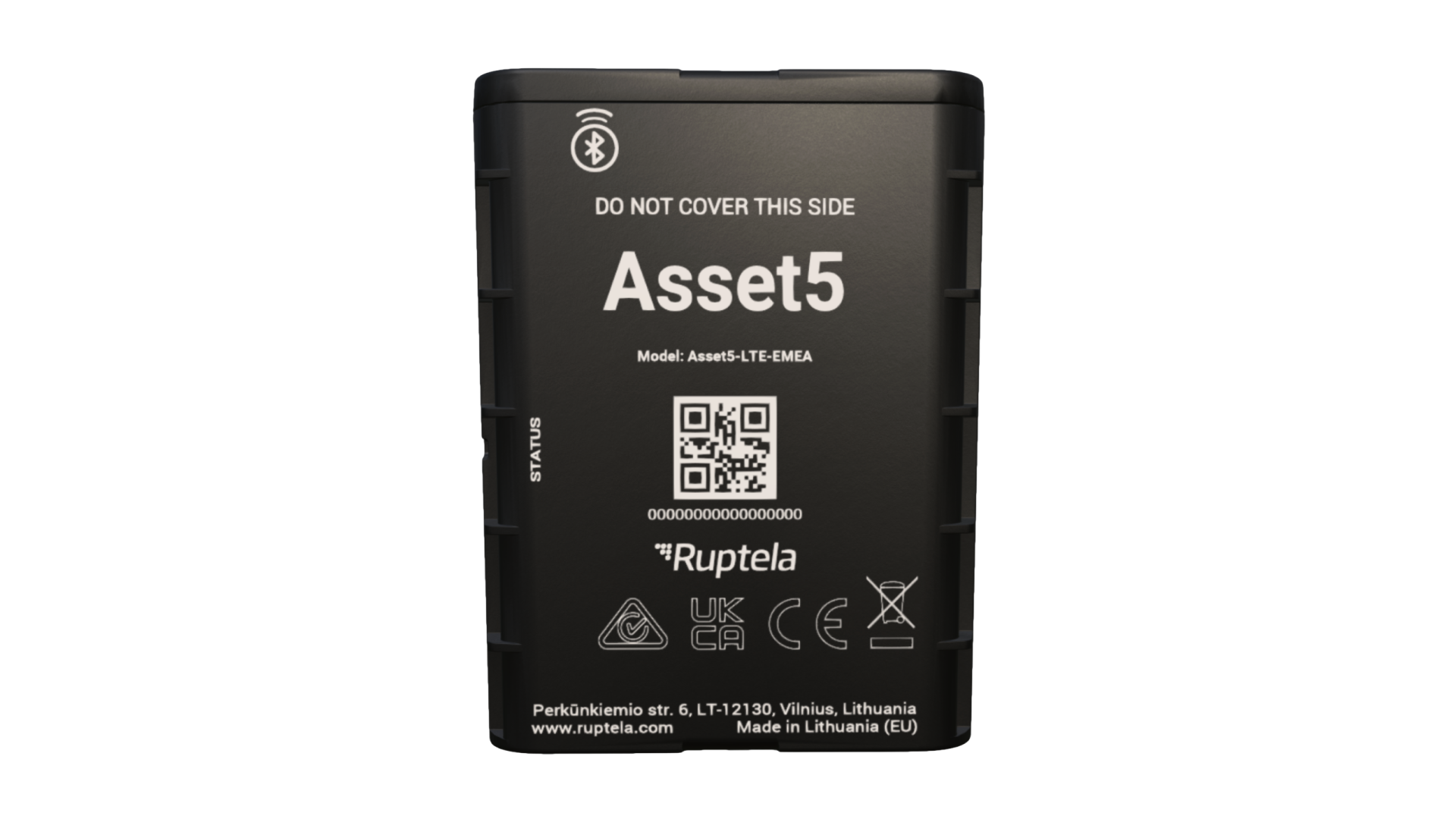

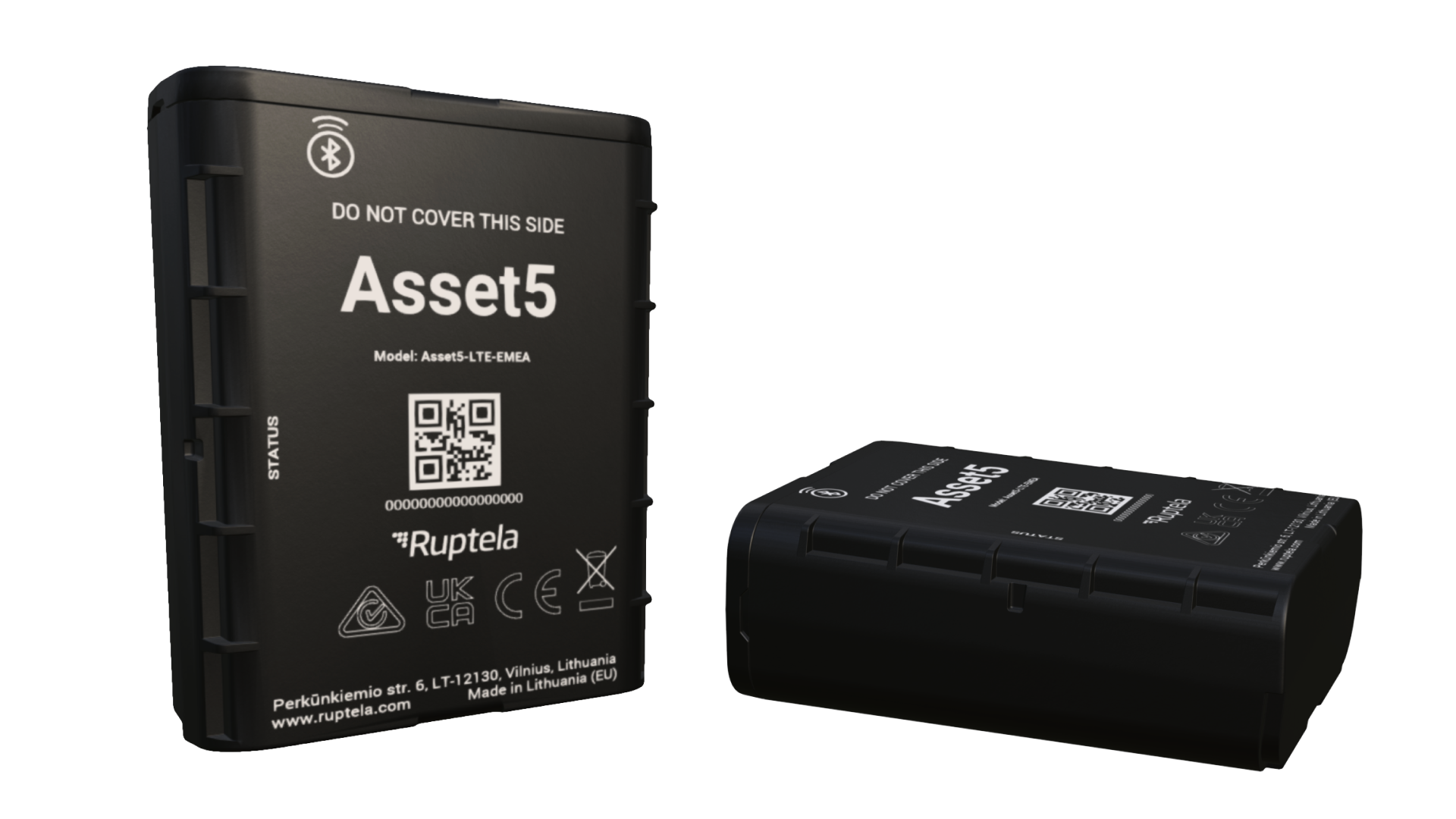

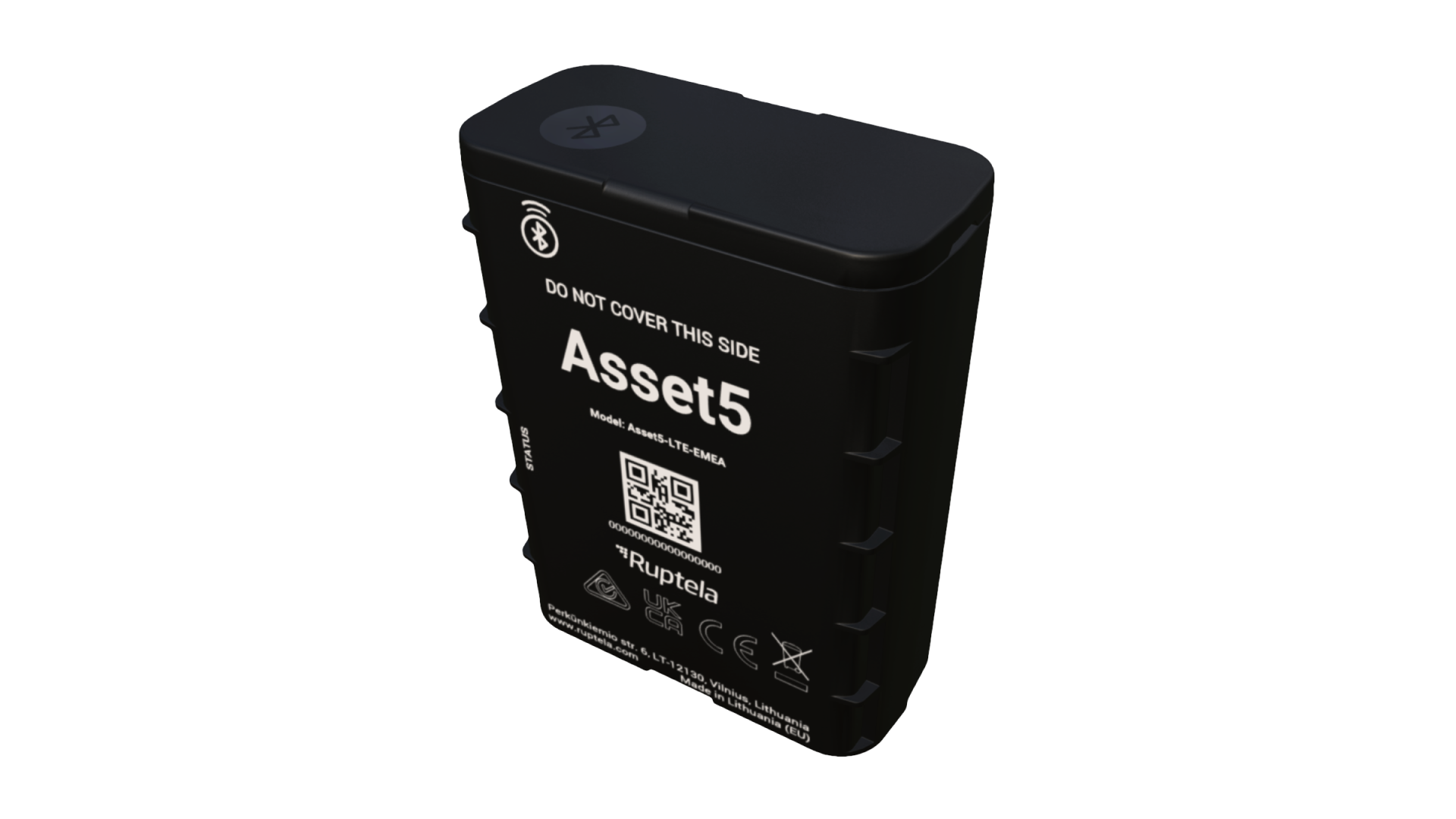

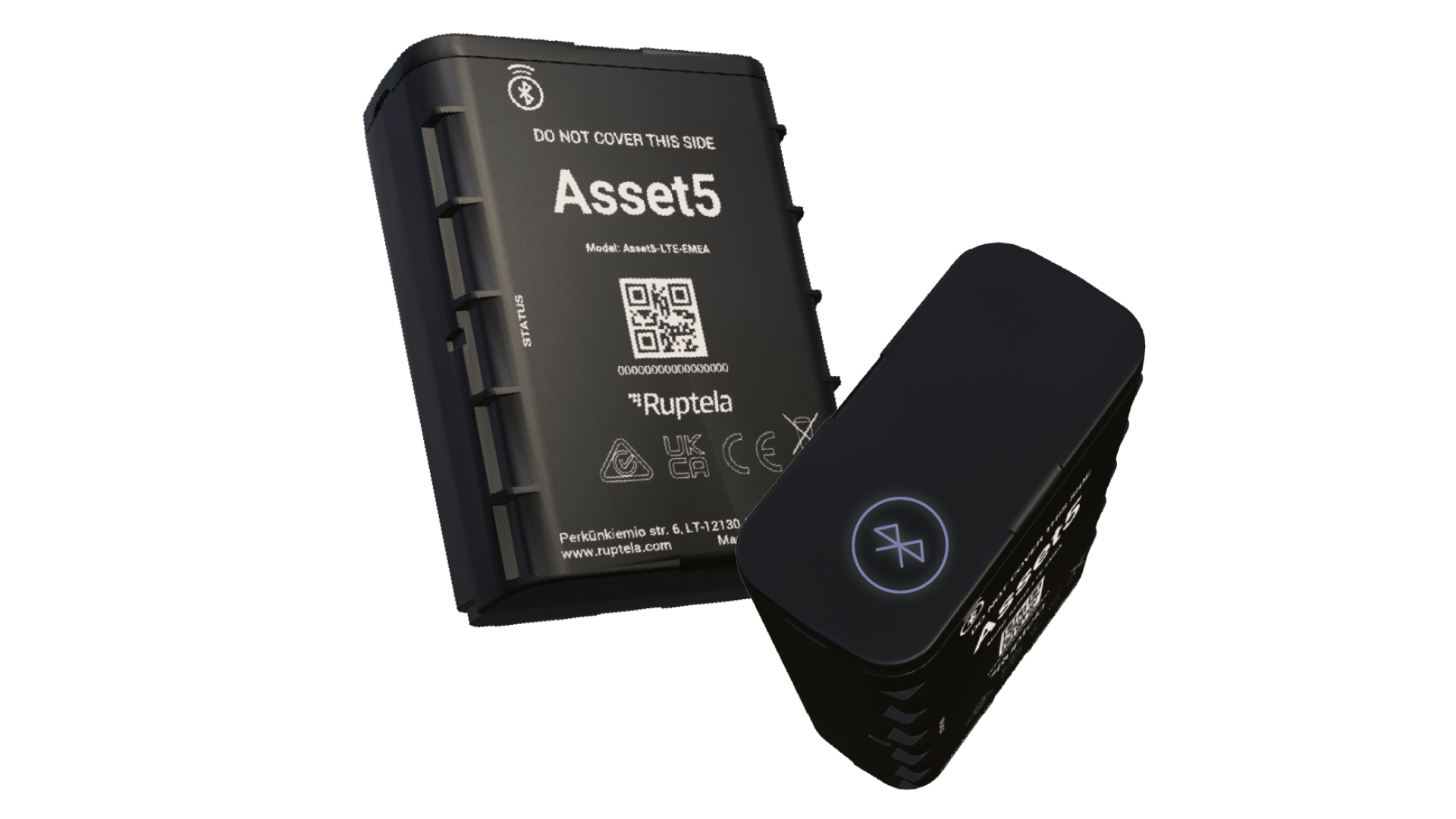

Asset5 is a compact Ruptela GPS tracker built for long-term, low-maintenance use. Powered by replaceable 2×AA LiSOCl₂ batteries, it operates autonomously for up to three years with 2 locations report per day. It combines GNSS and Cell-ID fallback and 4G + 2G connectivity for reliable positioning and data transfer. The IP68 housing is fully waterproof. Onboard BLE 6.0, a programmable action button, and tamper alerts enable wireless setup and security notifications. Ideal for backup tracking and autonomous location monitoring of rental and leased cars, containers, trailers, machinery, and other high-value assets.

Up to 3 years life-time

Dual LiSOCl₂ batteries power the tracker for 3 years with 2 reports per day and can be easily swapped in seconds for zero-downtime.

Precise location

GPS/GLONASS/Galileo/BeiDou signals used for reliable and precise positioning. Cell-ID fallback for back-up position in challenging environments.

Global connectivity

4G with 2G fallback ensures uninterrupted data transmission across urban, rural and remote areas.

Configurable action button

Programmable push-button for Bluetooth advertisement mode and panic alerts.

Small size

Just 70×56×28 mm housing for effortless installation in tight or concealed places.

IP68-rated housing

Fully waterproof enclosure to withstand harsh environments for a long time.

Motion detection

Built-in 3-axis accelerometer wakes the device on movement and enables more frequent data transmission while in motion.

Bluetooth LE 6.0

Wireless configuration and diagnostics via Bluetooth and mDMP mobile app – no cables required.

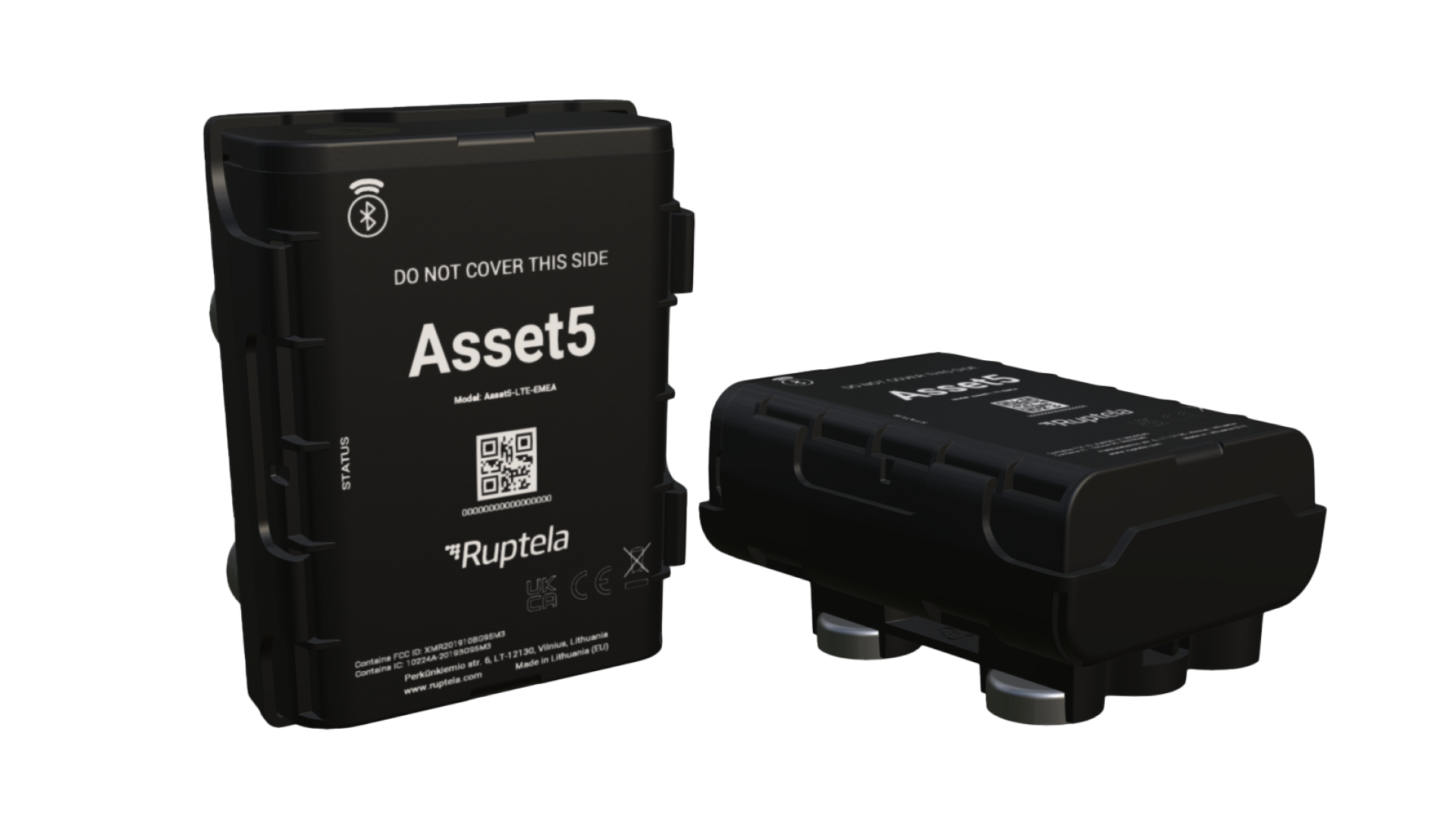

Magnetic holder

Optional magnetic brackets secure Asset5 to steel surfaces for rapid, non-invasive installation.

Tamper alerts

Casing-open detection sends alerts if the GPS tracker is opened.

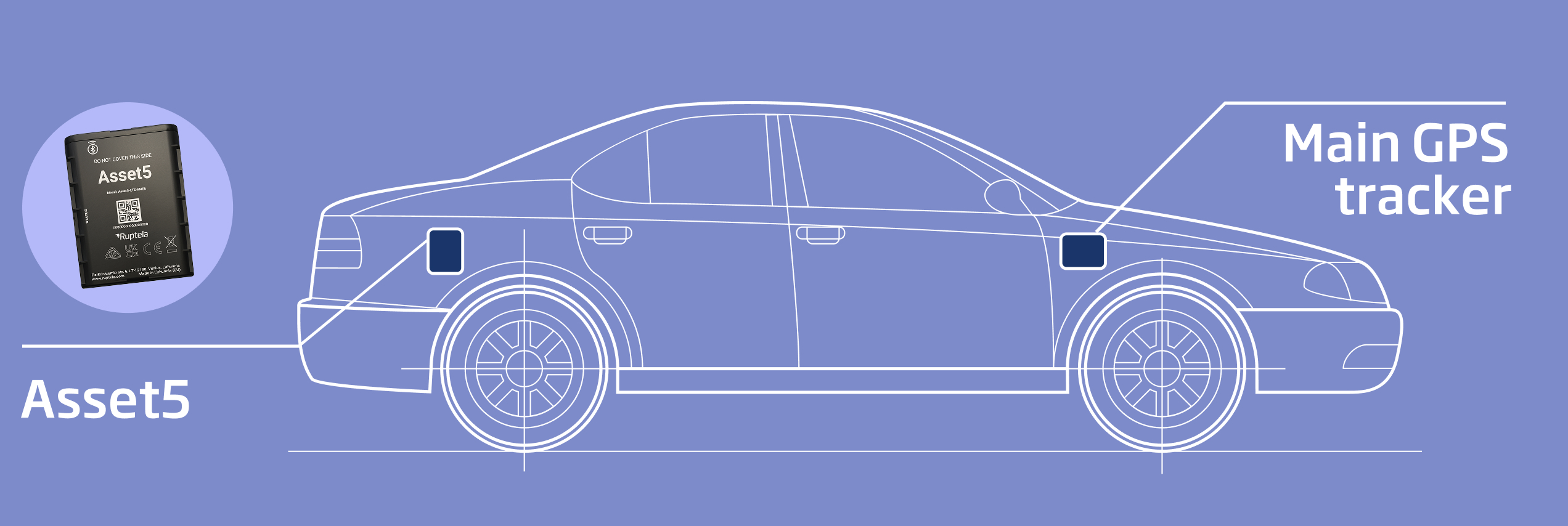

Backup tracking & stolen-asset recovery

Asset5 provides a fail-safe secondary tracking layer, delivering redundant GPS and cellular connectivity to guarantee uninterrupted asset visibility. If your primary tracker is disabled or tampered with, Asset5 instantly takes over, allowing route reconstruction, rapid recovery, and uninterrupted operational continuity.

Request a quote

Autonomous long-term tracking

Deploy “install-and-forget” monitoring with up to three years of battery powered operation.

Unauthorized movement detection

Built-in accelerometer is able to report the unexpected motion.

Real-time location monitoring

Asset5 can boost reporting frequency based on events, like primary tracker signal loss, for continuous tracking when it matters most.

Asset5 by industry:

Insurance & Theft recovery

Support usage-based insurance models, verify claims, and enable recovery of stolen or tampered assets with independent tracking.

Rental & Leasing assets

Discreet tracking for leased vehicles, equipment, or tool. Ideal for short-term or long-term deployments.

Container & Trailer tracking

Autonomous tracking of unpowered or parked trailers, shipping containers, and portable storage units.

Construction & Site equipment

Monitor the location and usage of machinery, tools, and mobile site infrastructure in harsh environments.

Agriculture & Mining machinery

Track non-road vehicles and powered equipment in fields, remote mines, or ports without relying on engine power.

Temporary & Mobile structures

Track cabins, mobile offices, and other movable infrastructure used in field operations.

Tool & Small asset tracking

Keep tabs on valuable tools and portable equipment across worksites and storage locations.

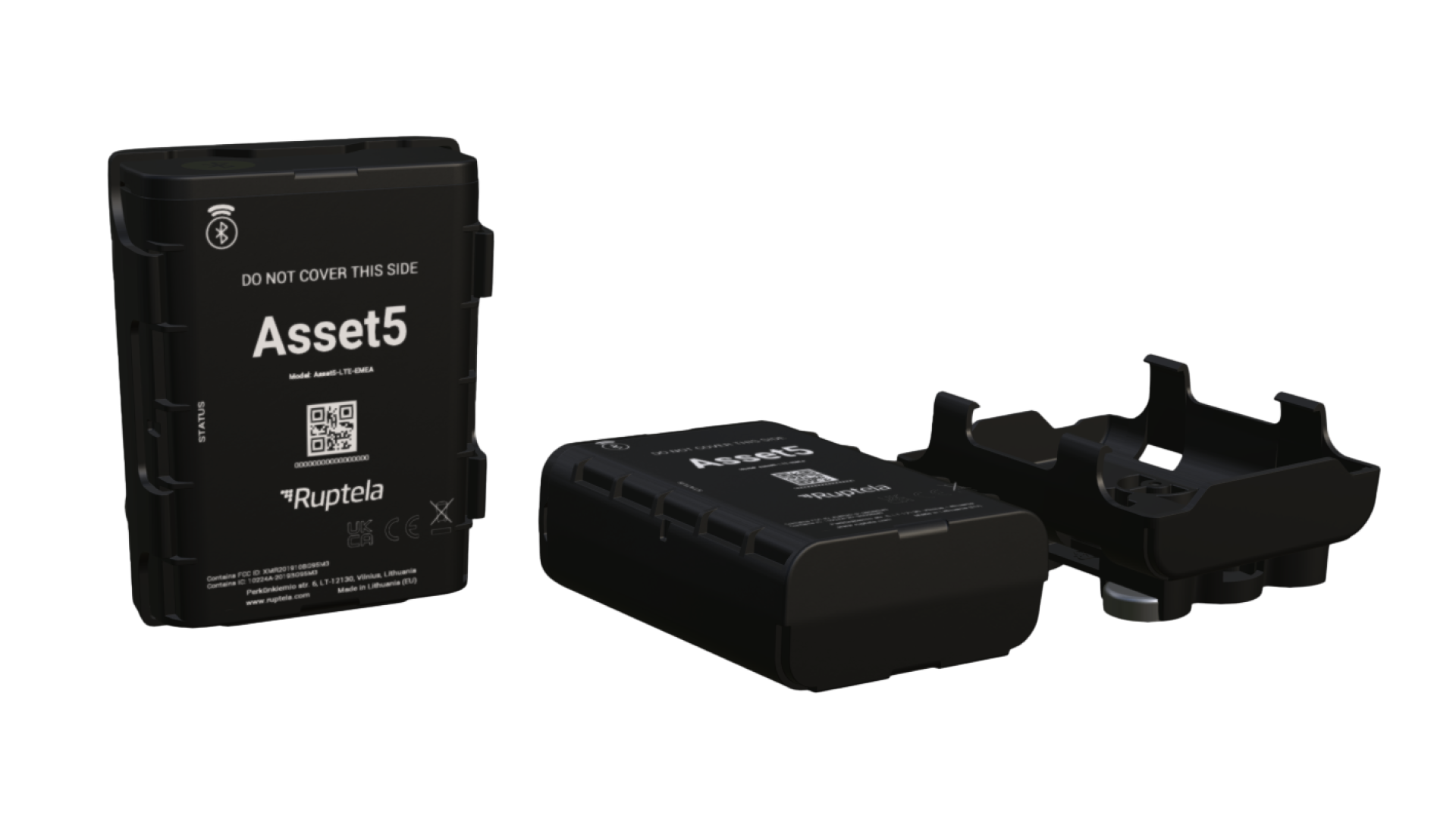

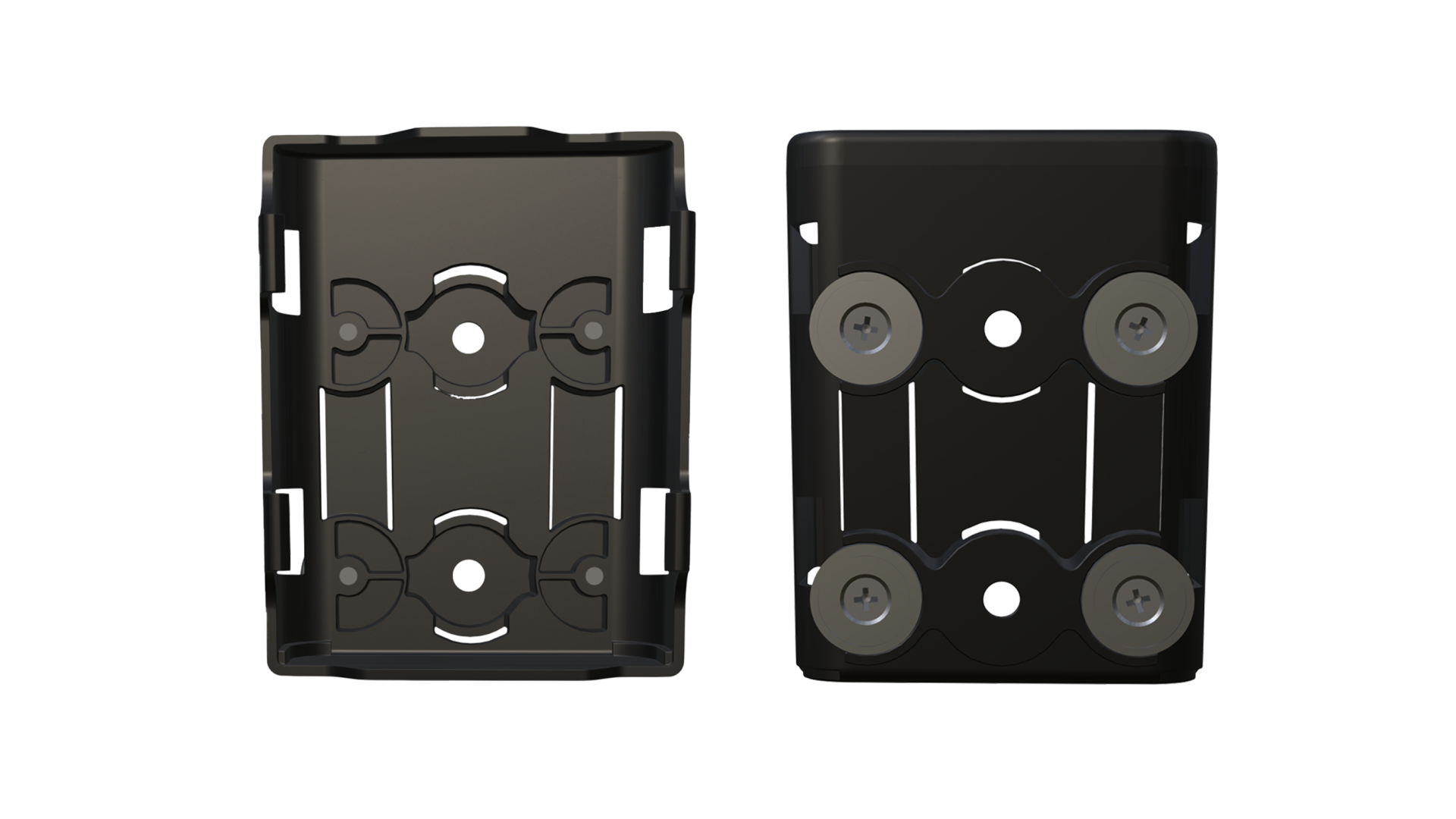

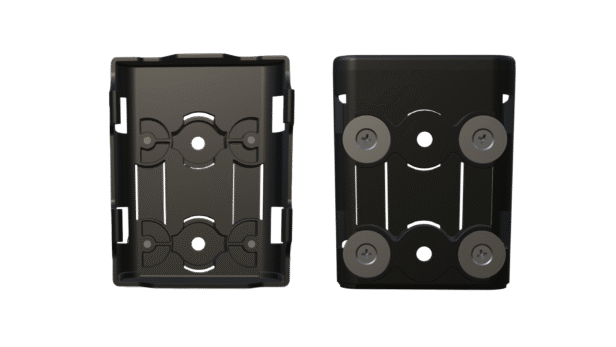

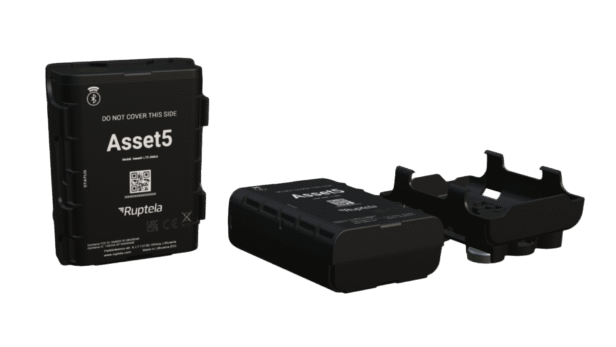

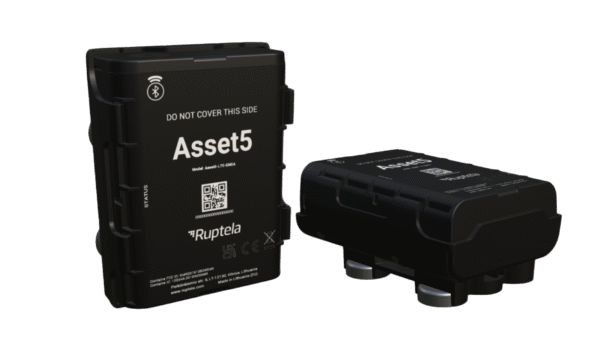

Optional magnetic holder for Asset5

Effortlessly secure your Asset5 tracker to a metal surface in seconds. Strong magnets keep the device firmly in place, even on rough roads or in harsh weather. When you need to change batteries or check the unit, simply pull it off the holder and snap it back on in seconds.

Request quote: Asset5 + Holder

Batteries

Dual LiSOCl₂ batteries power the tracker for 3 years with 2 reports per day, and can be easily swapped in seconds for zero-downtime.

Performance time	3 years with 2 reports per day
Internal battery	2xLiSOCl2, 3.6 V 2200 mAh
Positioning	GNSS (GPS, GLONASS, Galileo, BeiDou) and Cell-ID fallback
Connectivity	LTE Cat-1bis and Cat M1 NB-IoT options with 2G fallback
Bluetooth LE	6.0
Dimensions	70mm x 56mm x 28mm
Action button	Push to trigger Bluetooth advertisement and panic events
Ingress protection	IP68

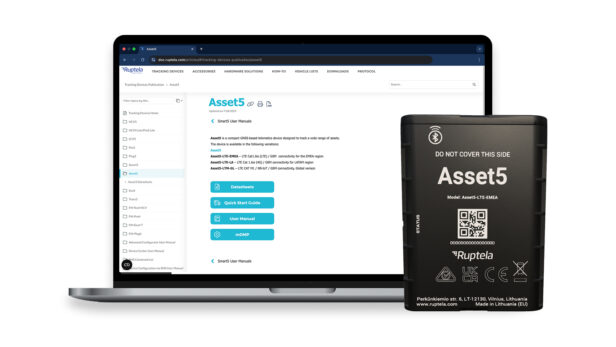

Full Asset5 specifications

Discover everything you need to get the most out of Asset5 and other Ruptela GPS tracking devices at doc.ruptela.com. There, you’ll find detailed datasheets, quick start guides, and comprehensive user manuals, as well as the latest firmware releases to keep your hardware up to date.

Get datasheet

Visit doc.ruptela.com

mDMP

mDMP is Ruptela’s mobile app built exclusively for Asset5. It enables quick, wireless configuration, firmware management, log collection, and access to device info – all via Bluetooth LE 6.0. With mDMP, field teams can manage Asset5 on-site using just a smartphone or tablet. The app is available for Android and IOS.

Learn more

Device Management Platform

Ruptela’s Device Management Platform is a dynamic online solution for remote configuration and firmware-over-the-air (FOTA) updates of GPS tracking devices. It is a complementary solution to all compatible Ruptela’s hardware devices.
