Trace5 Trailer Tracker

Trace5 Trailer Tracker

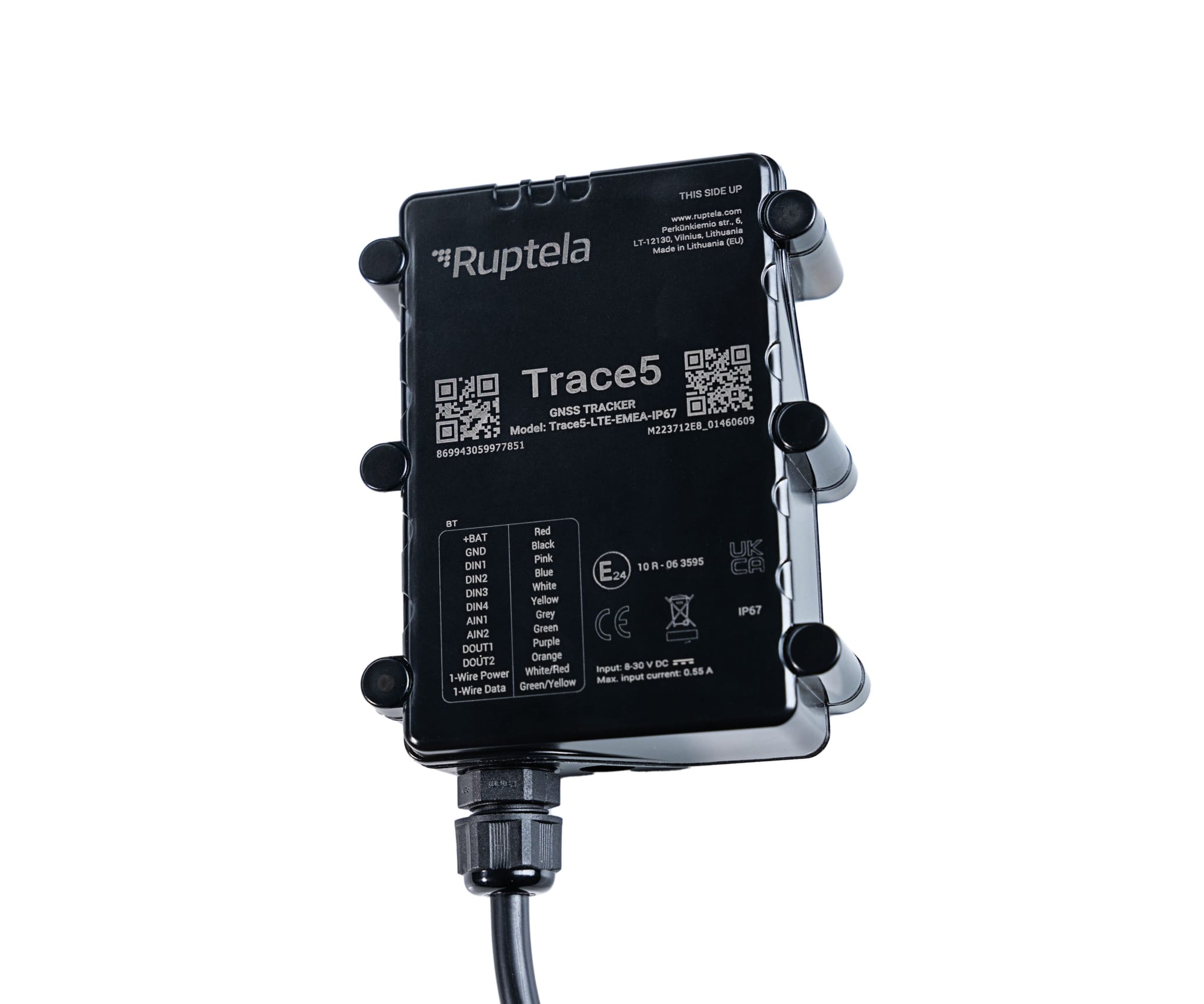

Trace5 Trailer Tracker – a compact GNSS based Automatic Vehicle Location (AVL) tracker that encompasses all the essential features for vehicle and trailer tracking as well as fleet management. This advanced device uses GNSS signals to acquire precise location data and transfers it to a server through cellular connectivity options, including LTE Cat M1, NB-IoT, or GSM networks.

Key values & Applications:

Excellent performance

Premium GNSS by U-blox, high-quality components.

Outstanding resistance of the housing

IP67 ensures ability to survive in harsh environments.

Long lasting internal battery

Tracker can last up to 36 days from a battery with a 5-hours reporting period.

Secure

Jamming detection, back-up battery, TLS v1.2.

Full solution from one supplier

GPS tracking device combined with suitable accessories.
  • Trailer tracking
  • Real-time monitoring of fleets and cargo
  • Fleet efficiency optimization
  • Driver behavior monitoring and education. Ensures driver, vehicle, and cargo safety and security
  • Cargo conditions monitoring
  • Accident detection
  • Stolen vehicle recovery
  • Driver identification
  • Business and private trips selection



  • LTE/LTM connectivity with 2G fallback
  • 3-axis accelerometer
  • Quick and easy installation
  • Big Internal 3100 mAh battery
  • 2x configurable (invertible) digital inputs
  • U-blox GNSS module
  • Power supply 8-30V DC
  • 4xDIN, 2xAIN, 2XDOUT, 1-wire
  • Internal memory 8 MB
  • Jamming detection
  • Internal GNSS and cellular antennas
  • Operating temperature -20 °C to +60°C
  • FW configuration SMS/GPRS (FOTA)/USB
  • Waterproof IP67 housing
  • Small size 95x 77 x 29 mm Trace5 IP67)

Detailed specification

All manuals are available at doc.ruptela.com

Device Center: configure trackers with ease

Ruptela tracking devices are configured using the Device Center application.

Device Center is a clear and user-friendly application with semi-automated configuration. All-new design and configuration process improvements help new and advanced users with tracker configuration.

Trace5-LTM-IP67(TT)
