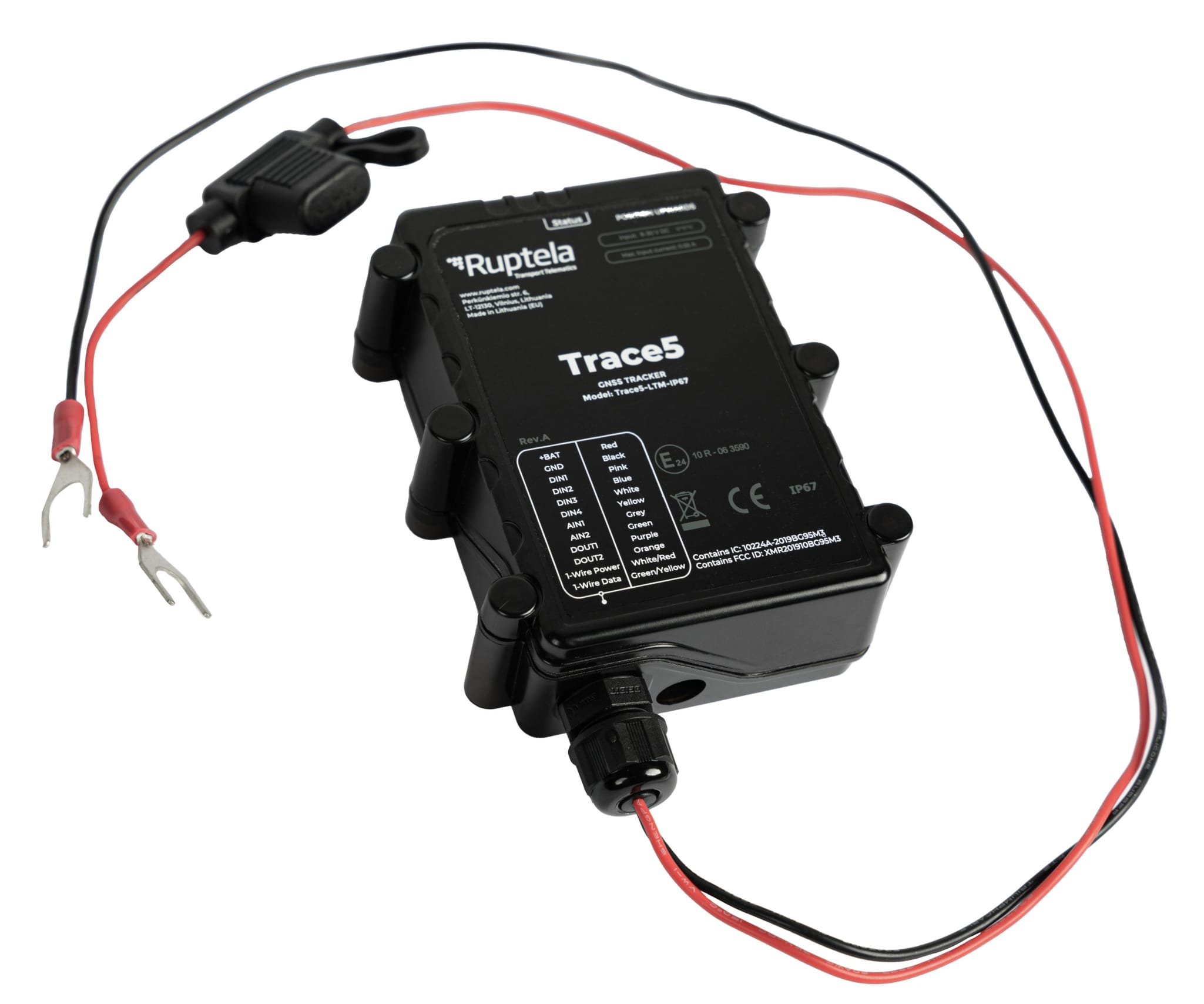

Trace5 Battery Mounted – a compact GNSS based AVL tracker with essential vehicle tracking and fleet management features explicitly designed for battery-mounted applications. It utilizes GNSS signals for accurate positioning and transfers data via 2G (GSM) and LTE Cat M1/NB2 or LTE Cat1 (4G) networks. With a premium GNSS module from U-blox, Trace5 delivers reliable location data for diverse industry

Simplify your fleet management with Trace5.

Key values & Applications:

Excellent performance

Premium GNSS by U-blox, high-quality components.

Easy installation & use

Installation straight on the vehicle battery, dedicated tools (device center, installation assistant), wireless solutions.

Outstanding resistance of the housing

IP67 ensures ability to survive in harsh environments.

Secure

Jamming detection, back-up battery, TLS v1.2.

Full solution from one supplier

GPS tracking device combined with suitable accessories.
  • Real-time monitoring of fleets and cargo
  • Fleet efficiency optimization
  • Driver behavior monitoring and education
  • Ensures driver, vehicle, and cargo safety and security
  • Cargo conditions monitoring
  • Accident detection
  • Stolen vehicle recovery
  • Driver identification
  • Business and private trips selection
  • LTE/LTM connectivity with 2G fallback
  • 3-axis accelerometer
  • Quick and easy installation
  • Internal 190 mAh backup battery
  • 2x configurable (invertible) digital inputs
  • U-blox GNSS module
  • Power supply 8-30V DC
  • 4xDIN, 2xAIN, 2XDOUT, 1-wire (accessible by switching harnesses)
  • Internal memory 8 MB
  • Jamming detection
  • Internal GNSS and cellular antennas
  • Operating temperature -20 °C to +60°C
  • FW configuration SMS/GPRS (FOTA)/USB
  • BLE 4.2 classic & LE
  • Waterproof IP67 housing
  • High resistance to external damage
  • Small size 95x 77 x 29 mm

Detailed specification

All manuals are available at doc.ruptela.com

Device Center: configure trackers with ease

Ruptela tracking devices are configured using the Device Center application.

Device Center is a clear and user-friendly application with semi-automated configuration. All-new design and configuration process improvements help new and advanced users with tracker configuration.

Trace5-LTE-IP67 (Battery Mounted)
