Asset5

A compact and durable GPS asset tracking device with long battery life and 4G connectivity.
Asset5

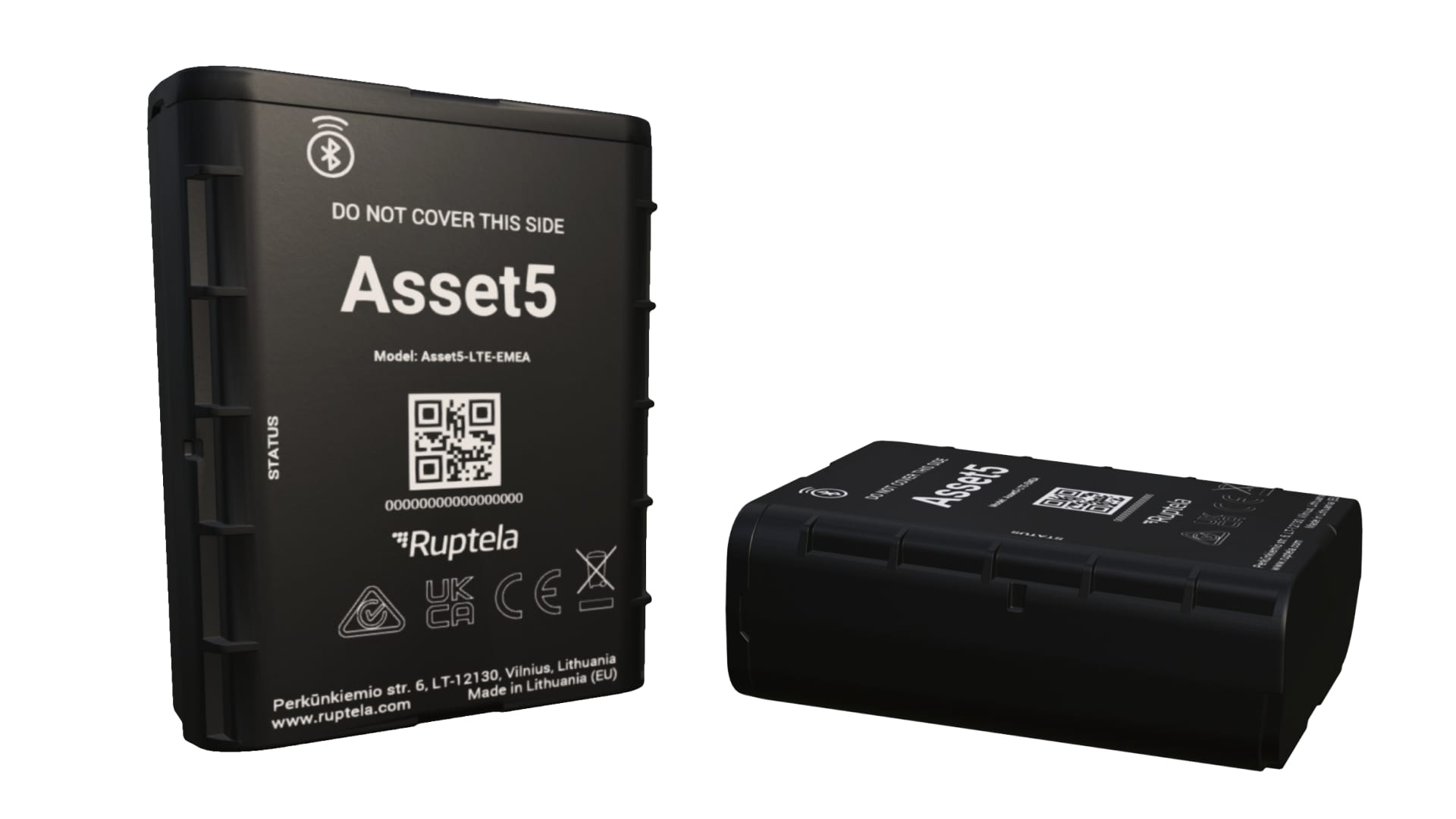

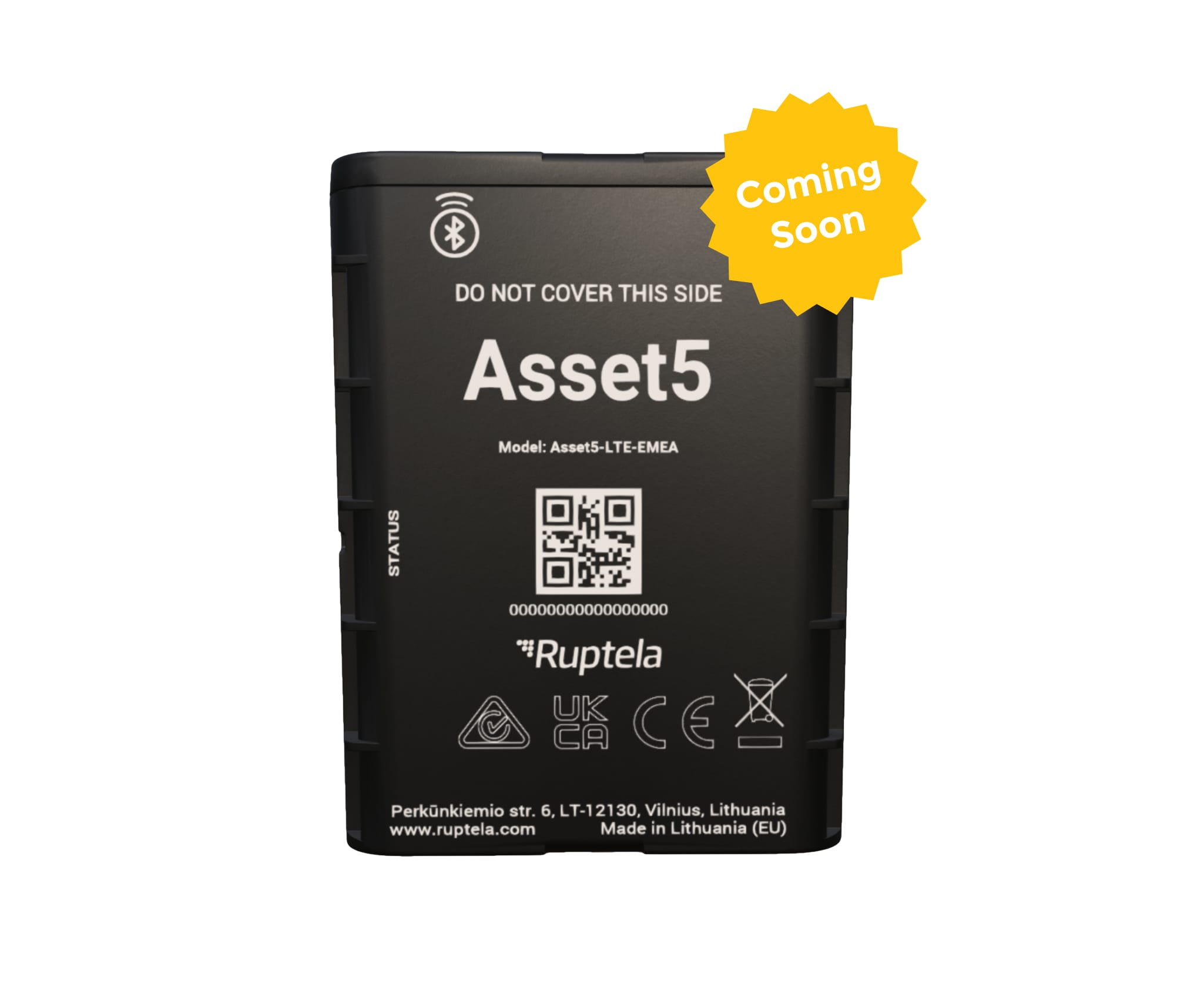

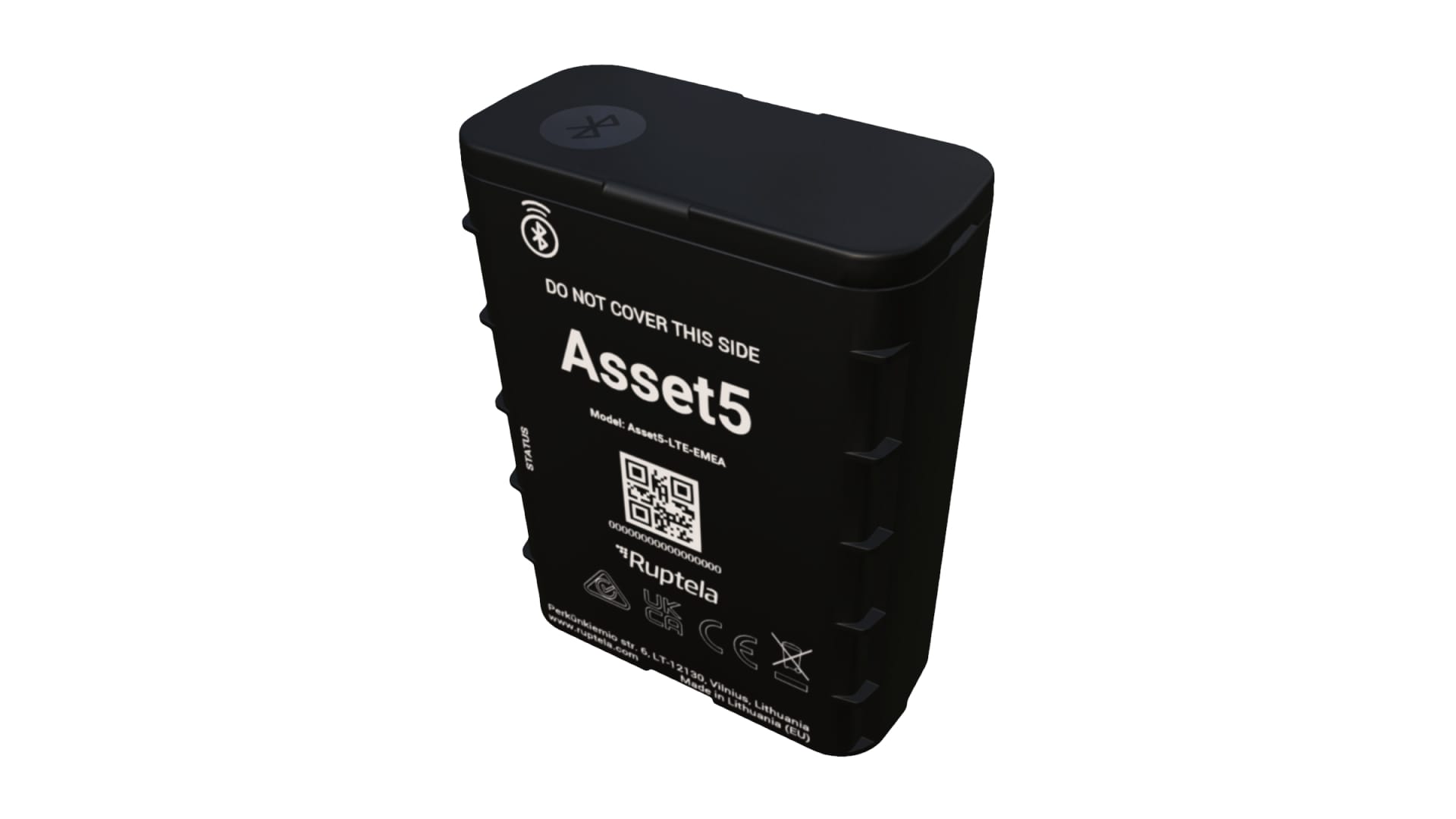

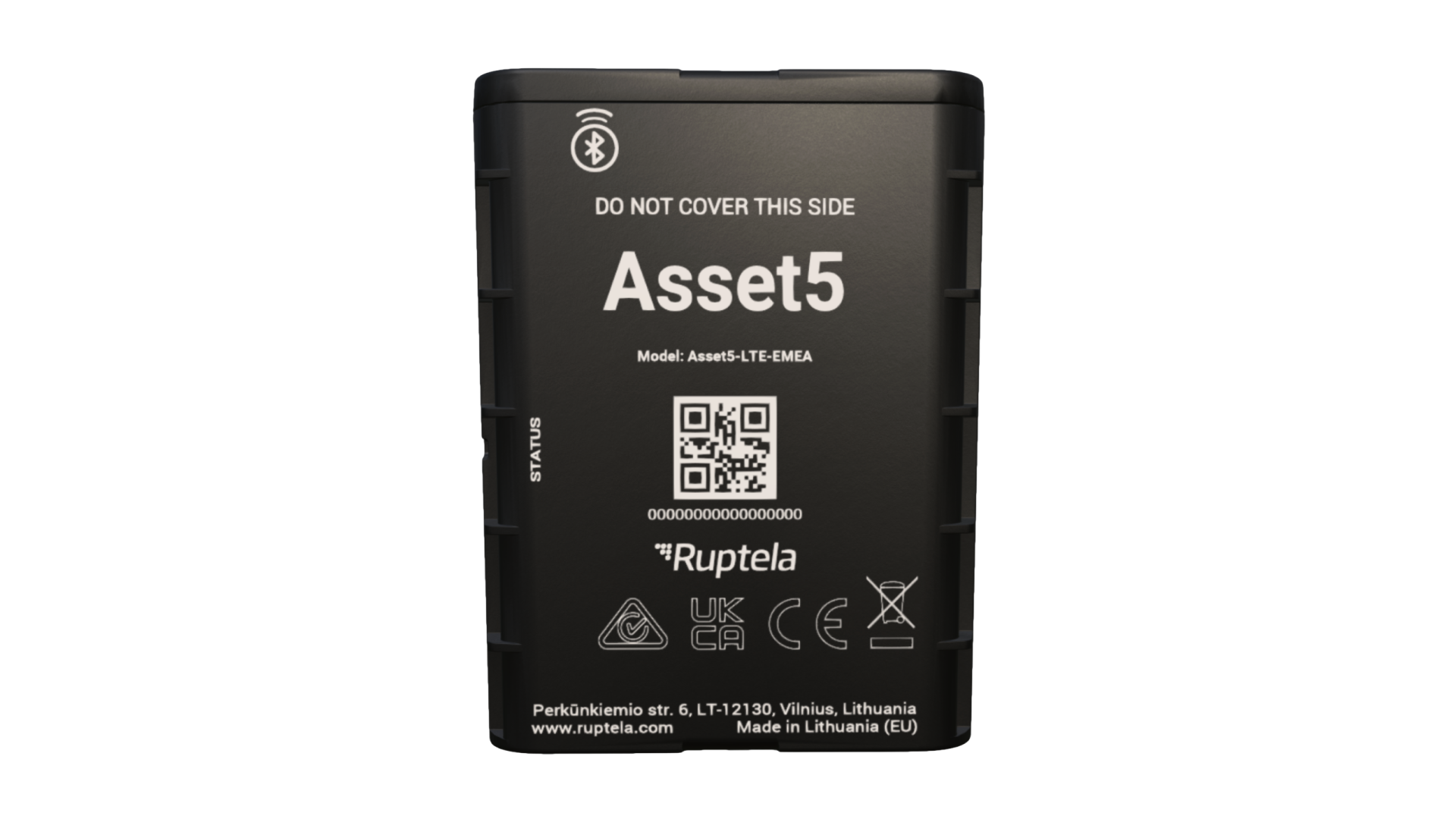

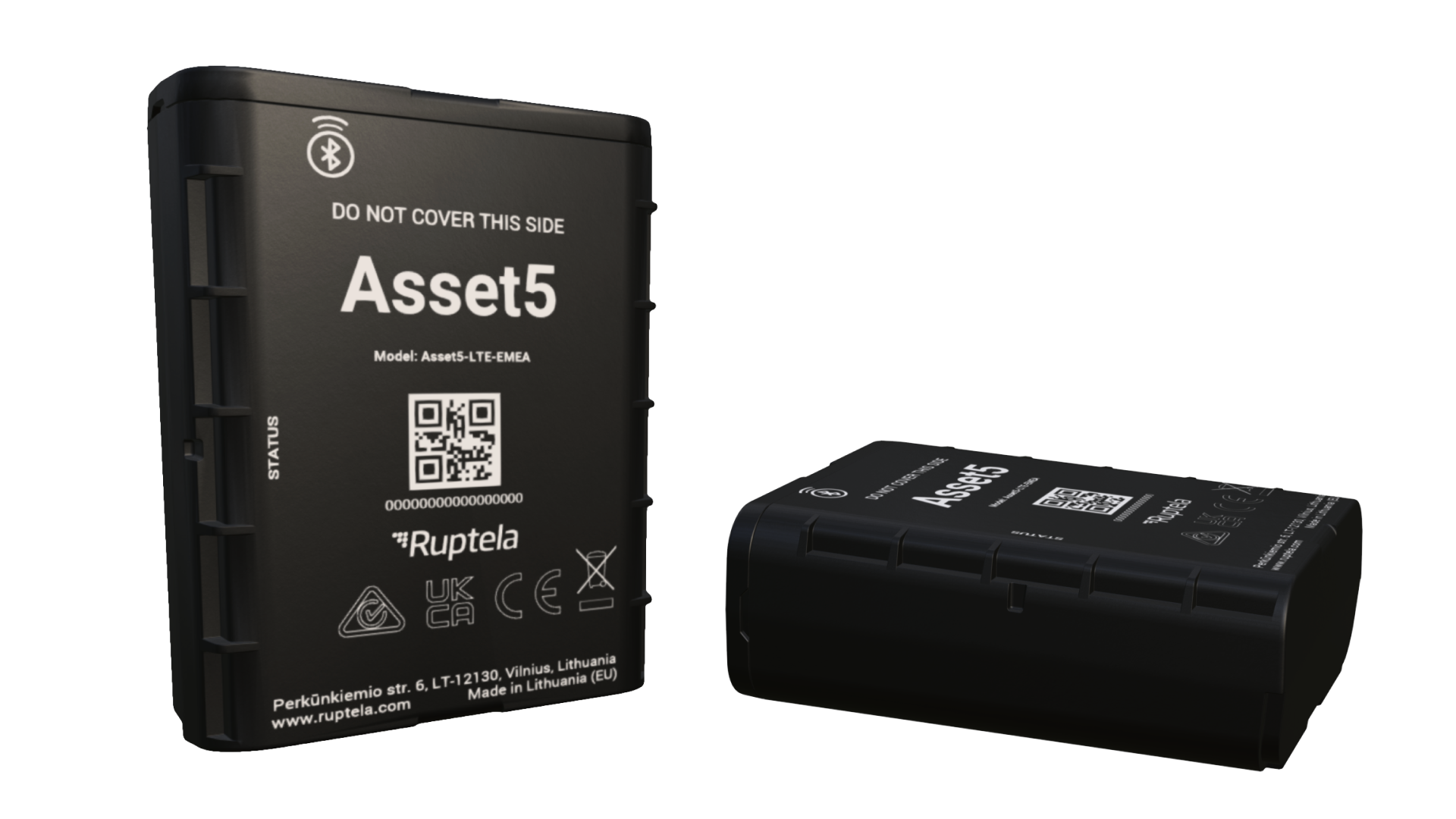

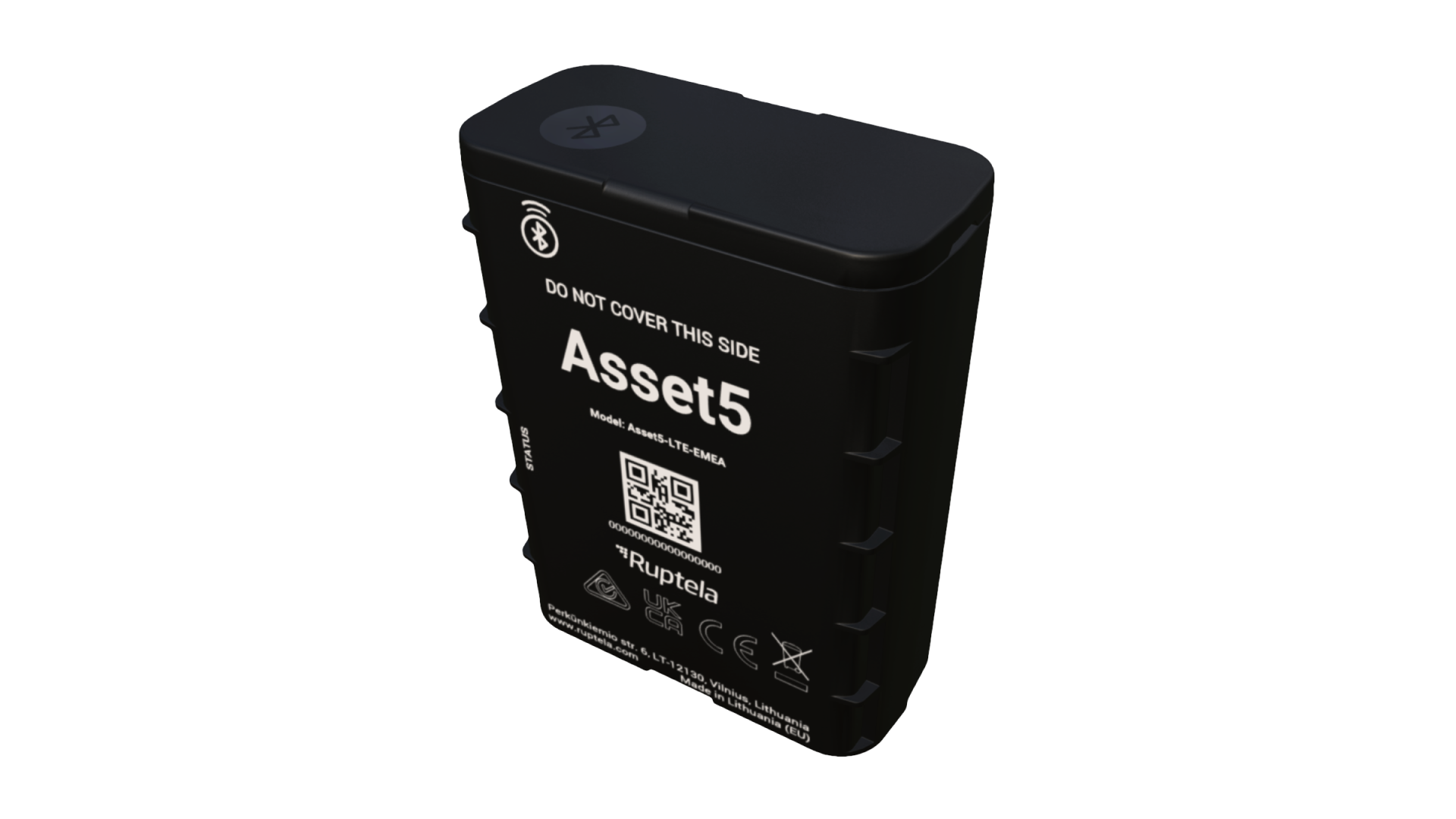

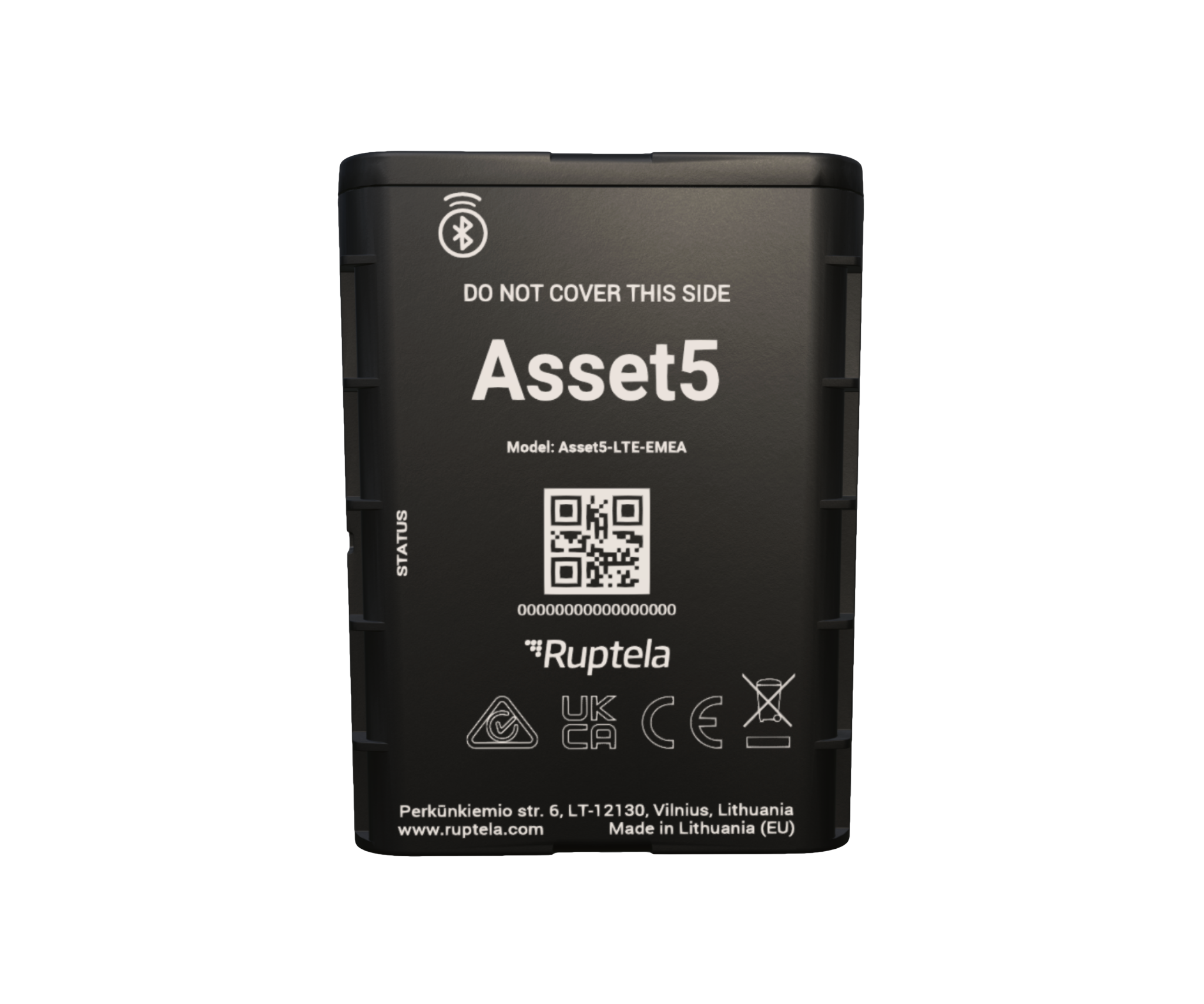

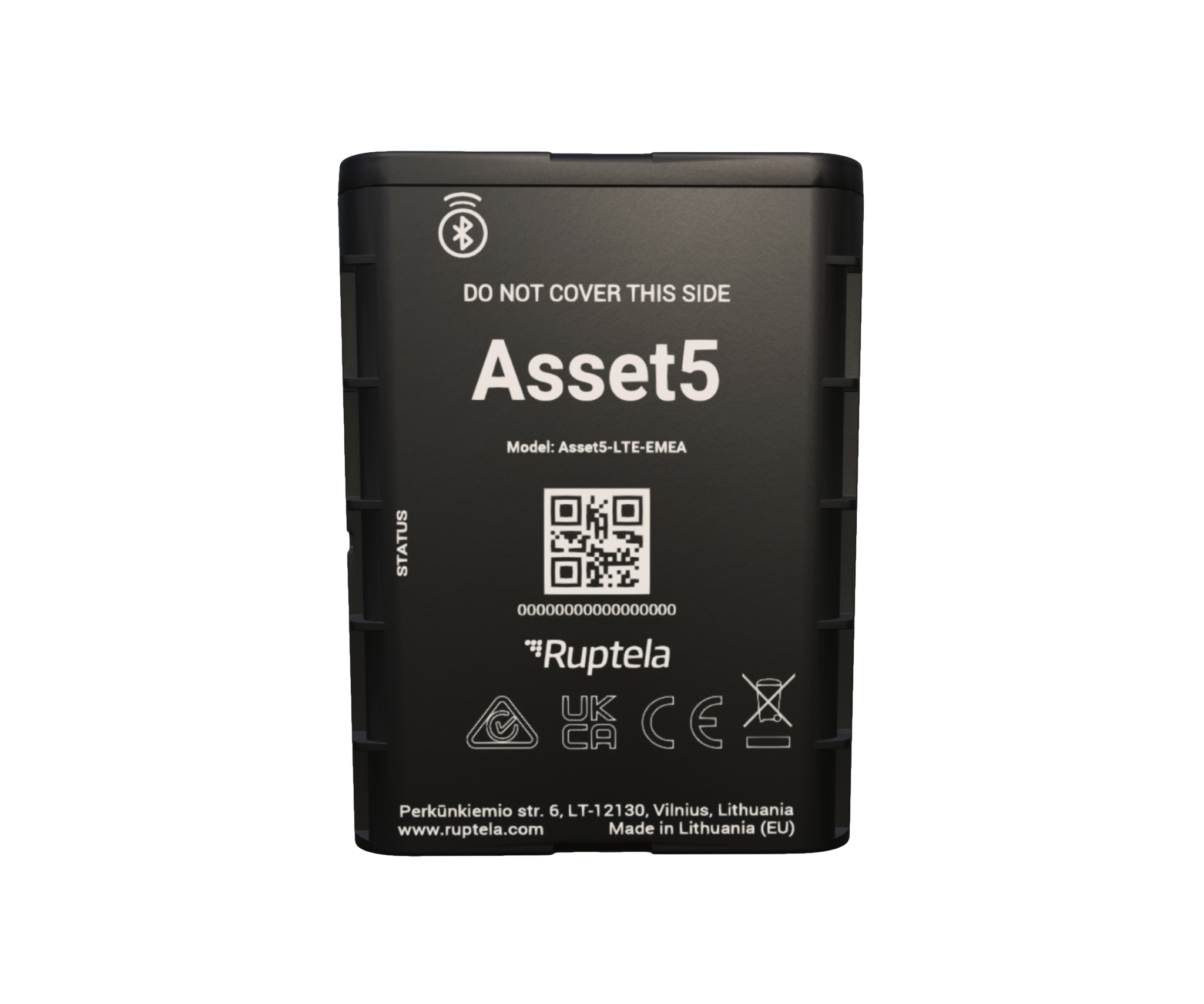

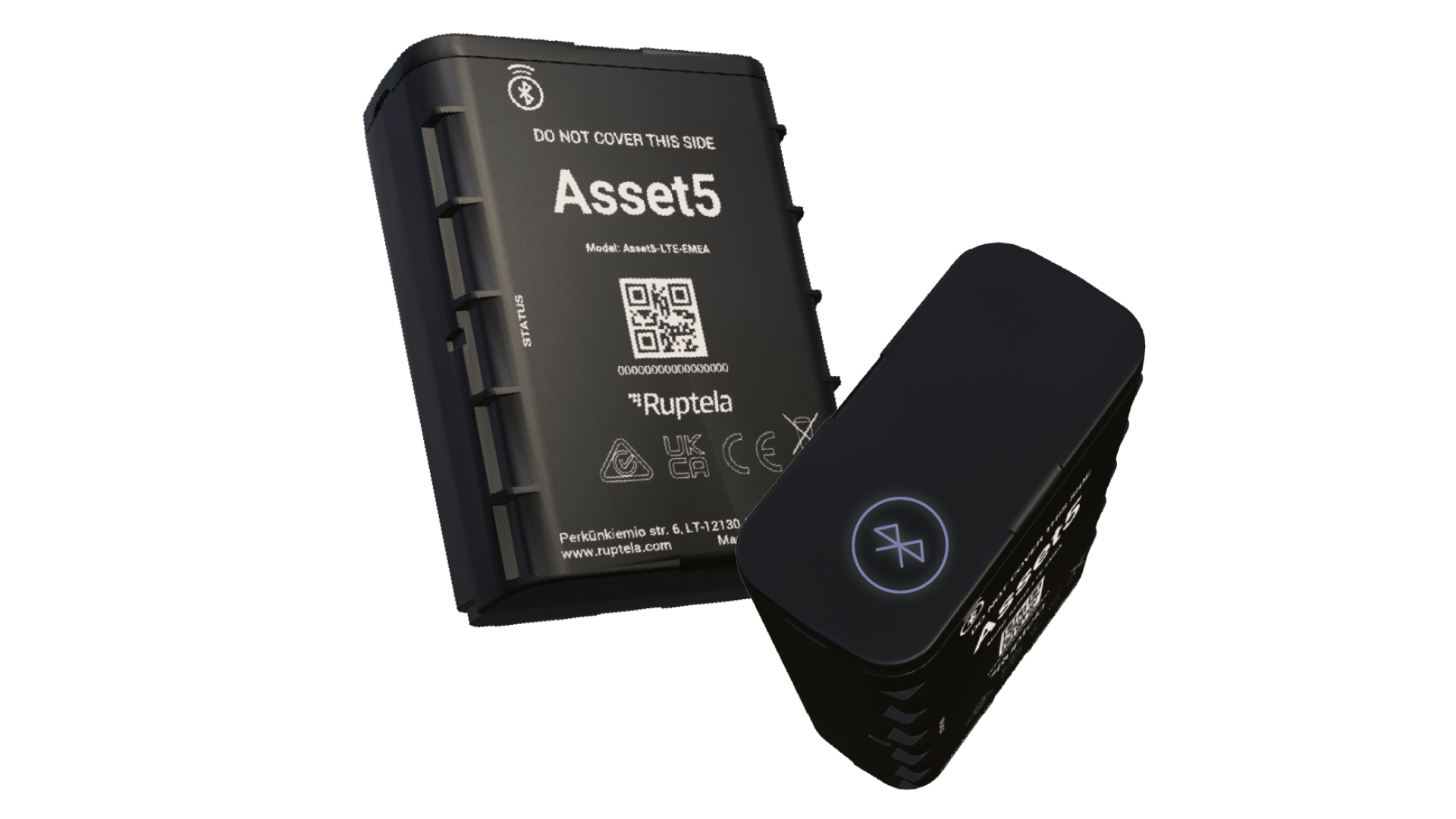

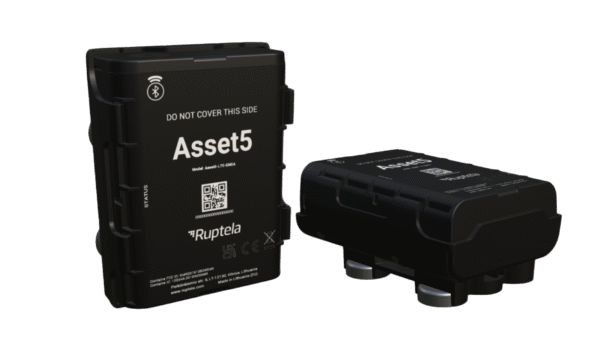

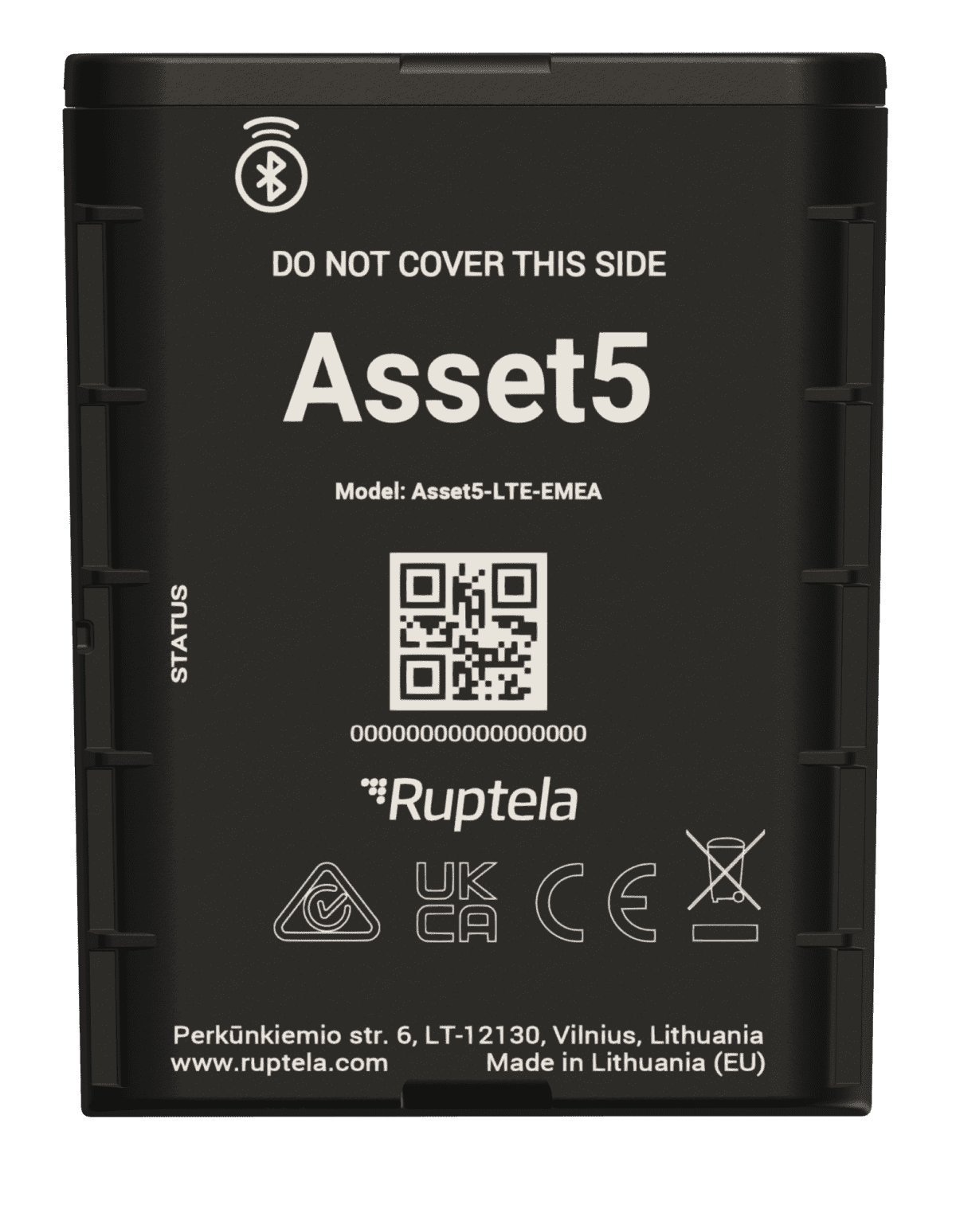

Asset5 is a compact GPS tracker built for long-term, low-maintenance use. Powered by replaceable 2×AA LiSOCl₂ batteries, it operates autonomously for up to three years with 1 location report per day. It combines GNSS and Cell-ID fallback and 4G + 2G connectivity for reliable positioning and data transfer. The IP68 housing is fully waterproof. Onboard BLE 6.0, a programmable action button, and tamper alerts enable wireless setup and security notifications. Ideal for backup tracking and autonomous location monitoring of rental and leased cars, containers, trailers, machinery, and other high-value assets.

Key values & Applications:

Up to 3 years life-time

Dual LiSOCl₂ batteries power the tracker for 3 years with 1 report per day and can be easily swapped in seconds for zero-downtime.

Global connectivity

4G with 2G fallback ensures uninterrupted data transmission across urban, rural and remote areas.

Configurable action button

Programmable push-button for Bluetooth advertisement mode and panic alerts.

IP68-rated housing

Fully waterproof enclosure to withstand harsh environments for a long time.

Motion detection

Built-in 3-axis accelerometer wakes the device on movement and enables more frequent data transmission while in motion.

Small size

Just 70×56×28 mm housing for effortless installation in tight or concealed places.

Bluetooth LE 6.0

Wireless configuration, diagnostics, accessories connection and firmware updates via Bluetooth and mDMP mobile app – no cables required.

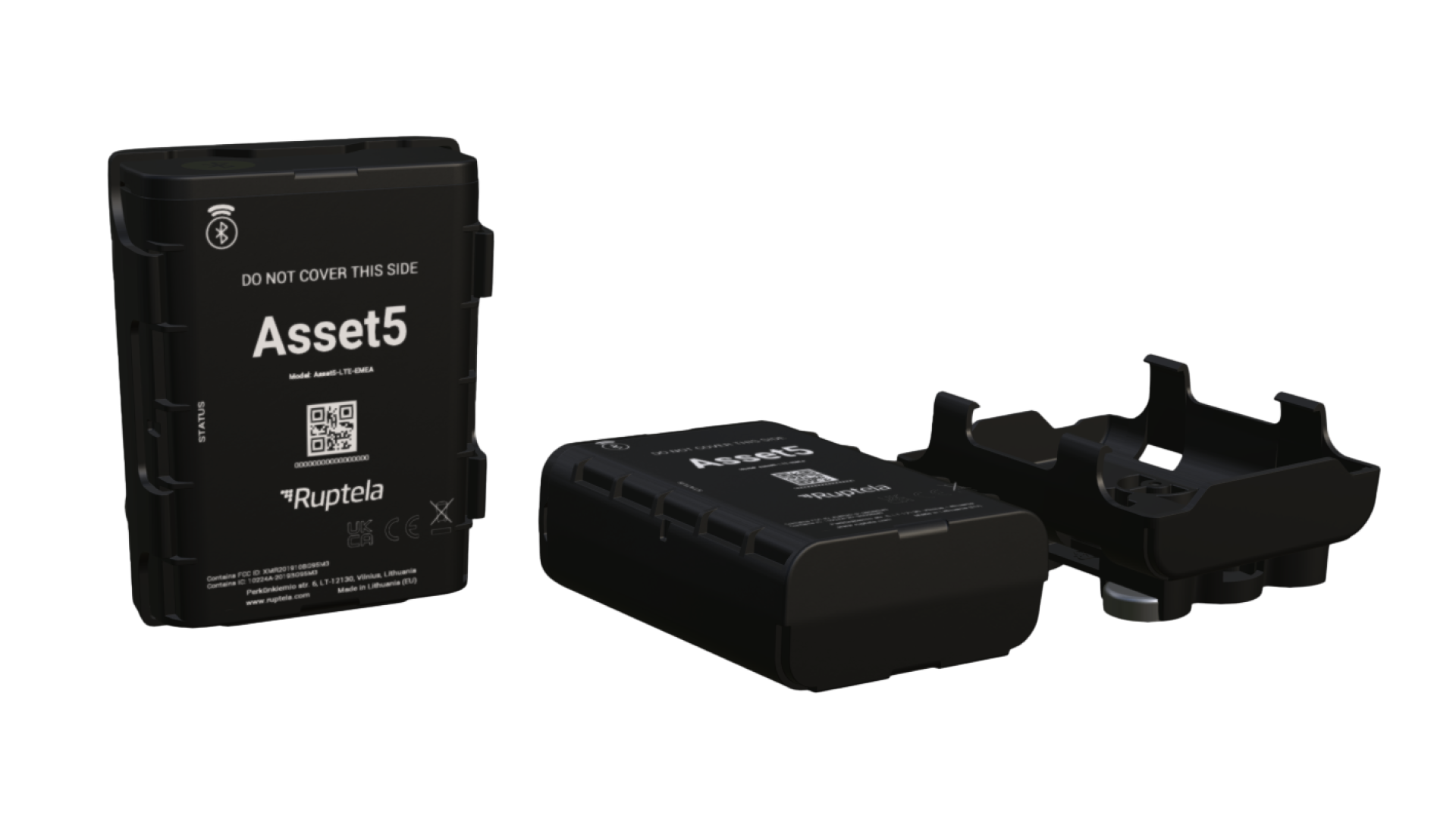

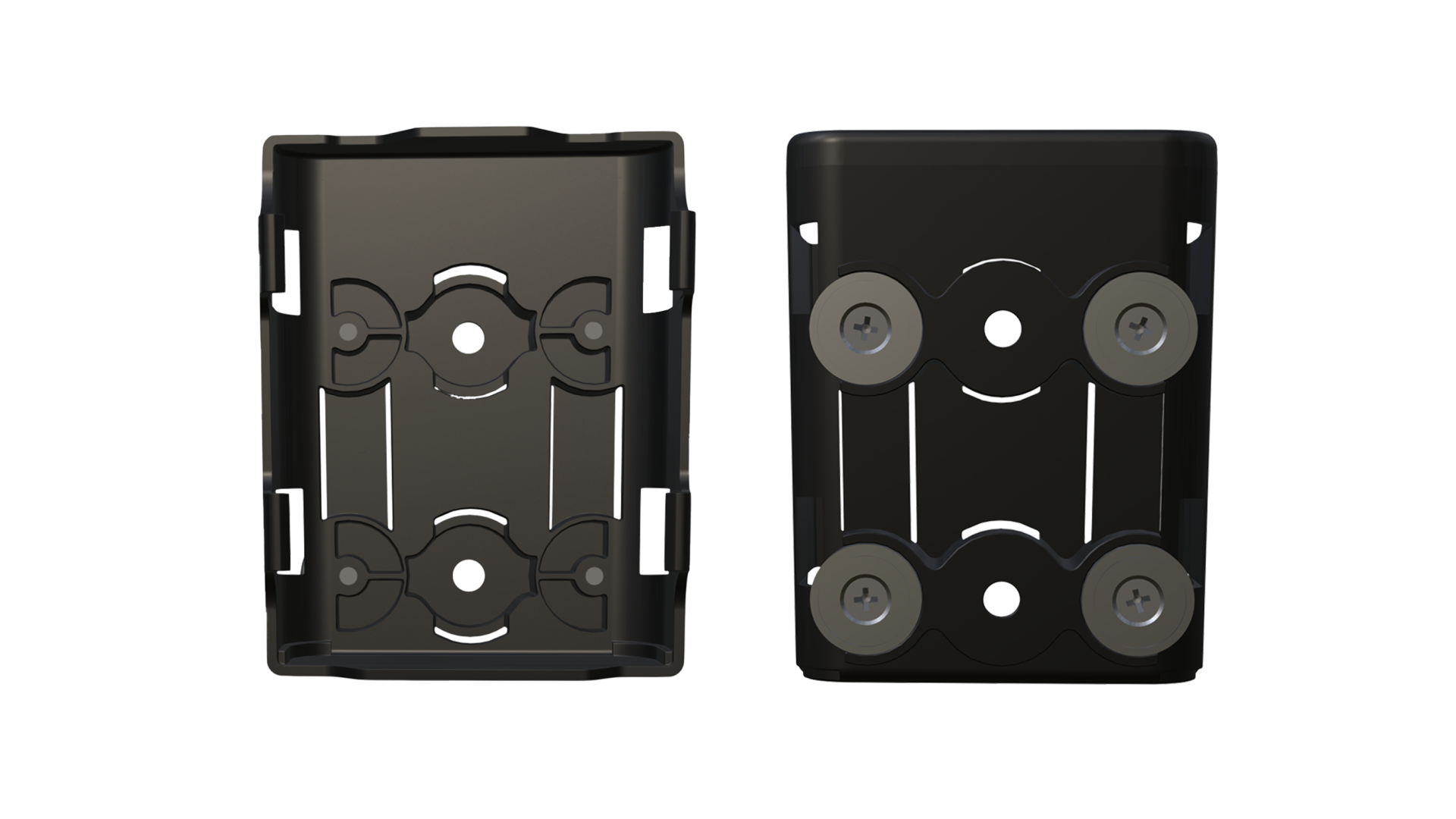

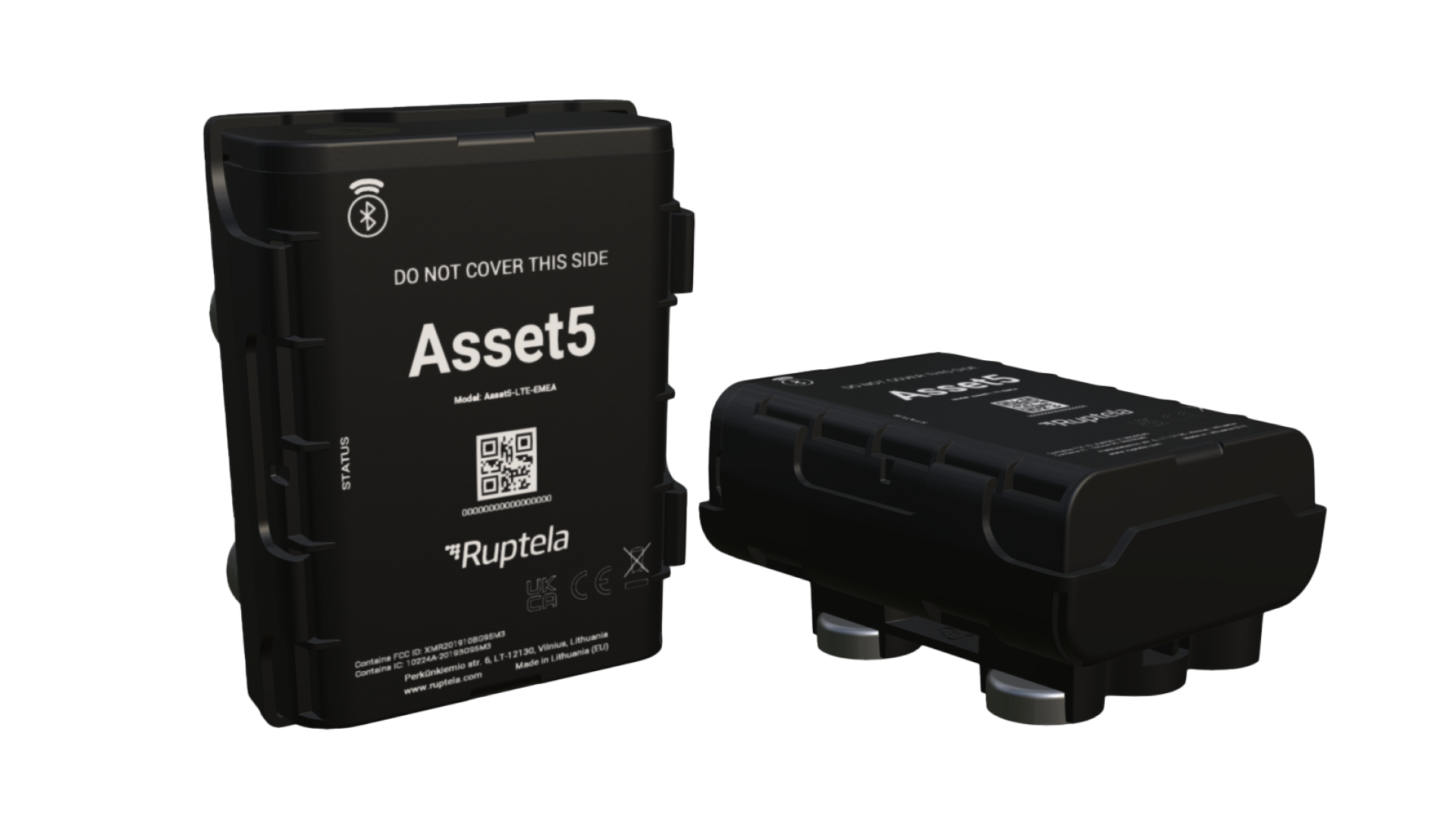

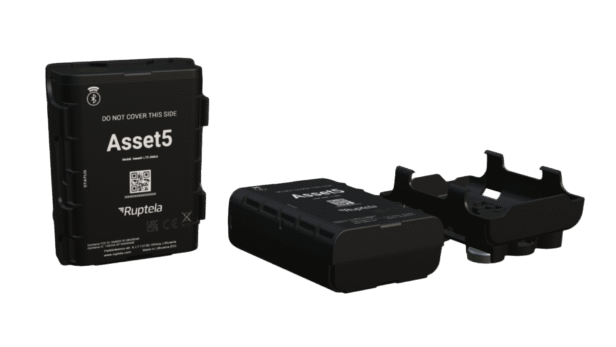

Magnetic holder

Optional magnetic brackets secure Asset5 to steel surfaces for rapid, non-invasive installation.

Precise location

GPS/GLONASS/Galileo/BeiDou module and Cell-ID fallback for reliable location positioning.

Tamper alerts

Casing-open detection sends alerts if the GPS tracker is opened.

Applications:

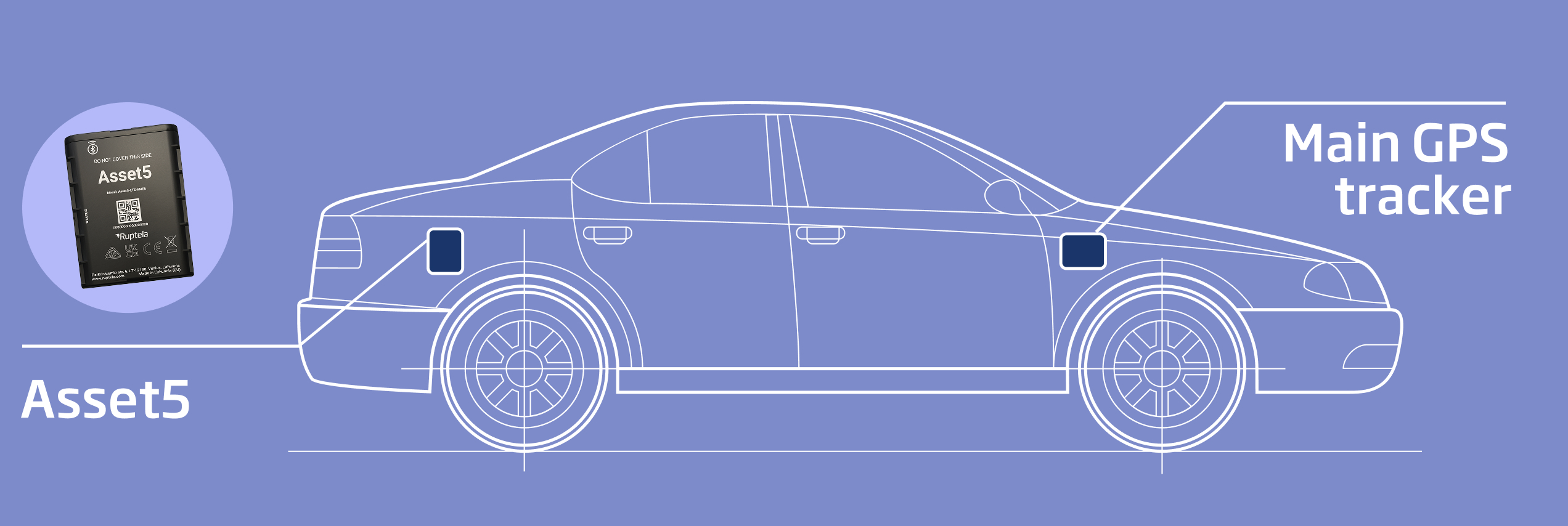

Backup tracking & stolen-asset recovery – Coming soon
Asset5 provides a fail-safe secondary tracking layer, delivering redundant GPS and cellular connectivity to guarantee uninterrupted asset visibility. If your primary tracker is disabled or tampered with, Asset5 instantly takes over, allowing route reconstruction, rapid recovery, and uninterrupted operational continuity.

Autonomous long-term tracking
Deploy “install-and-forget” monitoring with up to three years of battery powered operation.

Unauthorized movement detection
Built-in accelerometer is able to report the unexpected motion.

Real-time location monitoring
Asset5 can boost reporting frequency based on events, like primary tracker signal loss, for continuous tracking when it matters most.



Industries:

Rental & Leasing assets
Discreet tracking for leased vehicles, equipment, or tools – ideal for short-term or long-term deployments.

Insurance & Theft recovery
Support usage-based insurance models, verify claims, and enable recovery of stolen or tampered assets with independent tracking.

Container & Trailer tracking
Autonomous tracking of unpowered or parked trailers, shipping containers, and portable storage units.

Construction & Site equipment
Monitor the location and usage of machinery, tools, and mobile site infrastructure in harsh environments.

Agriculture & Mining machinery
Track non-road vehicles and powered equipment in fields, remote mines, or ports without relying on engine power.

Tool & Small asset tracking
Keep tabs on valuable tools and portable equipment across worksites and storage locations.

Temporary & Mobile structures
Track cabins, mobile offices, and other movable infrastructure used in field operations.

Asset5 specifications:

• Performance time: 3 years with 1 report per day
• Internal battery: 2xLiSOCl2, 3.6 V 2200 mAh
• Positioning: GNSS (GPS, GLONASS, Galileo, BeiDou) with Cell-ID fallback
• Connectivity: LTE Cat-1bis and Cat M1 NB-IoT options with 2G fallback
• Bluetooth LE version: 6.0
• Dimensions: 70mm x 56mm x 28mm
• Action button: Push to trigger Bluetooth advertisement and panic events
• Ingress protection: IP68

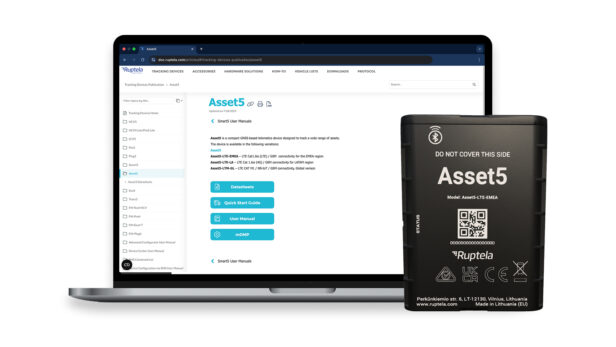

mDMP

mDMP is Ruptela’s mobile app built exclusively for Asset5. It enables quick, wireless configuration, firmware management, log collection, and access to device info – all via Bluetooth LE 6.0. With mDMP, field teams can manage Asset5 on-site using just a smartphone or tablet. The app is available for Android and IOS.

Device Management Platform: Remote configuration and firmware updates

Ruptela’s Device Management Platform is a dynamic online solution for remote configuration and firmware-over-the-air (FOTA) updates of GPS tracking devices. It is a complementary solution to all compatible Ruptela’s hardware devices.

  • Asset5-LTM-GL – Asset5 with CAT-M1/NB-IoT/GSM connectivity
  • Asset5-LTE-EMEA – Asset5 with CAT1.bis/GSM connectivity for Africa, Asia, the Middle East, and Europe
  • Asset5-LTE-LA – Asset5 with CAT1.bis/GSM connectivity for Latin America
  • Asset5-Battery – Replacement battery (1xLiSOCl₂) for Asset5

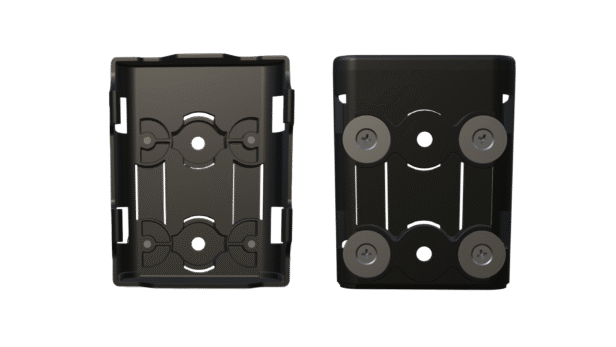

  • Asset5-Holder – Optional magnetic holder for secure, tool-free mounting
